How can I get a price quote for Enerpac PER8418C?

You can request a fast quote for Enerpac PER8418C from Yılsa Engineering. Reference part number CEY-7B4B2D997CDE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac PER8418C in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac PER8418C genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac PER8418C?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

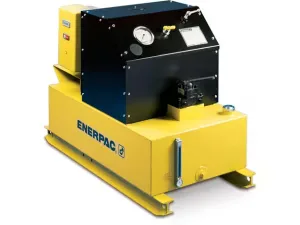

Enerpac PER8418C 700 bar Electric Pump

Enerpac PER8418C; 700 bar (10,000 psi), 18 gal (≈68 l) usable oil, 12.5 hp 460 V 3 Ph, two-speed electric hydraulic pump with 4/3 solenoid valve for double-acting cylinders.

EnerpacMFR # PER8418CSKU # CEY-7B4B2D997CDE

Maximum Operating Pressure Range10,000 psi

Output Flow Rate 1st Stage1016.4 in³/min (4.4 gal/min)

Country of OriginUnited States

Motor Phases3 Ph

Maximum Flow at Rated Pressure2 gal/min

Motor Electrical Specification460 V, 3 Ph, 60 Hz

Have questions?Chat on WhatsApp

About This Product

The PER8418C is a two-speed electric hydraulic pump from the Enerpac 8000 Series, supplied for 460 V power. It comes with a 4-way, 3-position solenoid valve and pendant control for double-acting cylinders. Reservoir capacity is 25 gal (≈95 l) with 18 gal (≈68 l) usable oil. Maximum operating pressure is 700 bar (10,000 psi). First-stage rating is 3,700 psi (≈255 bar) at 4.4 gal/min (≈16.7 l/min); second-stage flow is 2 gal/min (≈7.6 l/min). The motor is 12.5 hp, 460 V (460-480 V), 3 Ph, 60 Hz, drawing 16.5 A, with a sound level of 78 - 84 dB(A). It suits large cylinders, multiple-cylinder circuits, high-flow applications, and large jobs where oil capacity is the deciding factor.

Features and Benefits

High flow and large reservoir for large cylinders and multiple-cylinder circuits
Two-speed pump design for rapid cylinder advance
Panel-mounted pressure gauge and adjustable relief valve for pressure control
460 V 3 Ph motor with lower current draw (16.5 A)
Full-length reservoir sight tube with integral thermometer

Enerpac PER8418C

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure Range10,000 psi

Output Flow Rate 1st Stage1016.4 in³/min (4.4 gal/min)

Country of OriginUnited States

Motor Phases3 Ph

Maximum Flow at Rated Pressure2 gal/min

Motor Electrical Specification460 V, 3 Ph, 60 Hz

Motor Voltage460-480 V V

Usable Oil Capacity18 gal

Pump ControlPendant

Output Flow Rate 2nd Stage462 in³/min

Motor Frequency60 Hz Hz

1st Stage Pressure Rating3700 psi

Reservoir Capacity25 gal

Product TypeElectric Pump - High Flow

Duty CycleExtended

Reservoir Capacity5,775 in³

Sound Level78 - 84 dB(A)

Maximum Operating Pressure10,000 psi

Valve OperationSolenoid

Pump Valve Type4-way, 3-position

Motor Size12.5 hp

Series8000

Pump Power SourceElectric

Current Draw16.5 A

2nd Stage Pressure Rating10,000 psi

Cylinder CompatibilityDouble-acting

Valve ModelVE43

Product LineIndustrial Tools

Weight765 lbs

2nd Stage Output Flow2 gal/min

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualPump - ElectricPDF·1.7 MB 2 languages· in one file

Repair Parts SheetPump - ElectricPDF·799 KB·English

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochurePEM-PER-8000-Series Electric Pumps; EnglishPDF·501 KB
