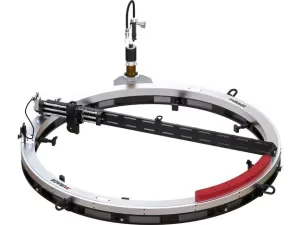

Enerpac MM2000E 0-2032 mm External Flange Facing

Enerpac MM2000E; external mount flange facing machine with 0–2032 mm (0–80 in) facing diameter, up to 4 rpm and a 6.2 bar (90 psi) pneumatic drive.

EnerpacMFR # MM2000ESKU # YLS4QWASTCUMH3F

Dimension G410 mm (16.1 in)

Dimension E1382 mm (54.4 in)

Tool Post Stroke Z-Axis0 - 102 mm (0 - 4 in)

Dimension F362 mm (14.25 in)

Dimension D2355 mm (92.7 in)

Clamping Range1729 - 2045 mm (68.1 - 80.5 in)

Have questions?Chat on WhatsApp

About This Product

The Enerpac MM2000E is a robust flange facing machine that clamps onto the outside of the flange. It offers continuous variable auto-feed for continuous groove (gramophone) finishes to ASME standard. Facing diameter is 0–2032 mm (0–80 in) with a clamping range of 1729–2045 mm. Tool post stroke is 0–102 mm on the Z axis and 0–356 mm on the X axis; feed rate is 0.1–0.8 mm per revolution. The pneumatic drive runs up to 4 rpm on a 6.2 bar (90 psi) supply. The machine has 8 clamping locators. It is used for facing large flanges such as heat exchanger flanges and crane pedestals. A toolkit with tools and inserts and an air filter lubricator are included as standard.

Features and Benefits

Continuous variable auto-feed for ASME standard finishes
Quick-set radial clamping adjustment
Quick-set axial adjustment jaws
Heavy duty bearing construction for high metal removal rates and accuracy
Heat exchanger kits for back facing and slot machining in one operation
Choice of pneumatic, hydraulic or electric motors powered from an external source

Enerpac MM2000E

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G410 mm (16.1 in)

Dimension E1382 mm (54.4 in)

Tool Post Stroke Z-Axis0 - 102 mm (0 - 4 in)

Dimension F362 mm (14.25 in)

Dimension D2355 mm (92.7 in)

Clamping Range1729 - 2045 mm (68.1 - 80.5 in)

Minimum Facing Diameter0 mm

Dimension C2057 mm (81 in)

Dimension B1814 - 1499 mm (71.4 - 59 in)

Clamping Locators8

Drive TypePneumatic

Dimension I455 mm (17.9 in)

Dimension H168 mm (6.6 in)

Product TypeOutside Mount Flange Facing Machines

Supply Required6.2 bar (90 psi)

Tool Post Stroke X-Axis0 - 14 in

SeriesMME

Max. Speed4 rpm

Tool Post Stroke (X Axis)0 - 356 mm

Maximum Facing Diameter2032 mm

X & Y Axis Feed Rate per Rev0.1 - 0.8 mm (0.004 - 0.31 in)

Dimension A1729 - 2045 mm (68.1 - 80.5 in)

Min. Facing Diameter0 in

Product LineMachining Tools

Weight886 kg (1953 lbs)

Max. RPM (300 scfm)15 rpm

Max. Facing Diameter80 in

Documents & CAD

Series documents 2· shared by this product series

Instruction ManualMME Series Externally Mounted Flange Facing MachinePDF·10.8 MB·English

BrochureMM-E_Series_External_Mount_Flange_Facing_Machines_EN-AUPDF·163 KB
