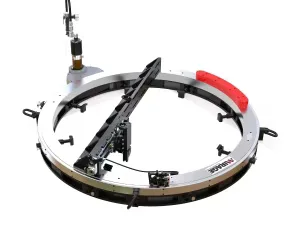

Enerpac MM1775E 0-1778 mm External Flange Facing

Enerpac MM1775E; external mount flange facing machine with 0–1778 mm (0–70 in) facing diameter, up to 5 rpm and a 6.2 bar (90 psi) pneumatic drive.

EnerpacMFR # MM1775ESKU # YLS03RFPXMKRXWL

Dimension G410 mm (16.1 in)

Dimension E1255 mm (49.4 in)

Tool Post Stroke Z-Axis0 - 102 mm (0 - 4 in)

Dimension F362 mm (14.25 in)

Dimension D2101 mm (82.7 in)

Clamping Range1475 - 1791 mm (58.1 - 70.5 in)

Have questions?Chat on WhatsApp

About This Product

The Enerpac MM1775E is a robust flange facing machine that clamps onto the outside of the flange. It offers continuous variable auto-feed for continuous groove (gramophone) finishes to ASME standard. Facing diameter is 0–1778 mm (0–70 in) with a clamping range of 1475–1791 mm. Tool post stroke is 0–102 mm on the Z axis and 0–356 mm on the X axis; X and Y axis feed rate is 0.1–0.8 mm per revolution. The pneumatic drive runs up to 5 rpm on a 6.2 bar (90 psi) supply. The machine has 8 clamping locators. It is used for facing heat exchanger flanges and other large flanges such as crane pedestals. A toolkit with tools and inserts and an air filter lubricator are included as standard.

Features and Benefits

Continuous variable auto-feed for ASME standard finishes
Quick-set radial clamping adjustment
Quick-set axial adjustment jaws
Heavy duty bearing construction for high metal removal rates and accuracy
Heat exchanger kits for back facing and slot machining in one operation
Choice of pneumatic, hydraulic or electric motors powered from an external source

Enerpac MM1775E

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G410 mm (16.1 in)

Dimension E1255 mm (49.4 in)

Tool Post Stroke Z-Axis0 - 102 mm (0 - 4 in)

Dimension F362 mm (14.25 in)

Dimension D2101 mm (82.7 in)

Clamping Range1475 - 1791 mm (58.1 - 70.5 in)

Minimum Facing Diameter0 mm

Dimension C1803 mm (71 in)

Dimension B1560 - 1245 mm (61.4 - 49 in)

Clamping Locators8

Drive TypePneumatic

Dimension I455 mm (17.9 in)

Dimension H168 mm (6.6 in)

Product TypeOutside Mount Flange Facing Machines

Supply Required6.2 bar (90 psi)

Tool Post Stroke X-Axis0 - 14 in

SeriesMME

Max. Speed5 rpm

Tool Post Stroke (X Axis)0 - 356 mm

Maximum Facing Diameter1778 mm

X & Y Axis Feed Rate per Rev0.1 - 0.8 mm (0.004 - 0.31 in)

Dimension A1475 - 1791 mm (58.1 - 70.5 in)

Min. Facing Diameter0 in

Product LineMachining Tools

Weight796 kg (1754 lbs)

Max. RPM (300 scfm)18 rpm

Max. Facing Diameter70 in

Documents & CAD

Series documents 2· shared by this product series

Instruction ManualMME Series Externally Mounted Flange Facing MachinePDF·10.8 MB·English

BrochureMM-E_Series_External_Mount_Flange_Facing_Machines_EN-AUPDF·163 KB
