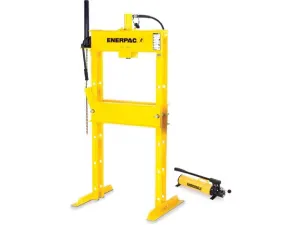

Enerpac IPH1240A 10 Ton H-Frame Press

Enerpac IPH1240A; 10 ton (101 kN) H-frame hydraulic press with RC1010 single-acting cylinder and P392 manual pump, 254 mm stroke, 700 bar.

EnerpacMFR # IPH1240ASKU # YLS50VO391JZAKO

Dimension F635 mm

Cylinder Stroke254 mm

Maximum Operating Pressure700 bar

Dimension E456 mm

Dimension D127 mm

Dimension K100 mm

Have questions?Chat on WhatsApp

About This Product

The IPH1240A is a 10 ton (101 kN) H-frame hydraulic press. The set includes an RC1010 single-acting cylinder, P392 manual pump, GF10B gauge assembly and GA2 adapter. Cylinder stroke is 254 mm and maximum operating pressure is 700 bar. Maximum vertical daylight is 1525 mm, minimum is 128 mm, and maximum bed width is 456 mm. Rapid advance speed is 7.8 mm/s and pressing speed is 1.7 mm/s. The press weighs approximately 81 kg. It is used in workshop and maintenance pressing applications such as straightening, press-fitting and bearing or bushing removal and installation.

Features and Benefits

Complete set with P392 manual pump, RC1010 cylinder, gauge and adapter
254 mm cylinder stroke
128–1525 mm vertical daylight range
700 bar maximum operating pressure
7.8 mm/s rapid advance and 1.7 mm/s pressing speed

Enerpac IPH1240A

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension F635 mm

Cylinder Stroke254 mm

Maximum Operating Pressure700 bar

Dimension E456 mm

Dimension D127 mm

Dimension K100 mm

Maximum Vertical Daylight A1525 mm

Dimension J755 mm

Product TypeH-Frame

SeriesIP

Dimension N1829 mm

Dimension M818 mm

Dimension L210 mm

Press Capacity101 kN (10 ton)

Rapid Advance Speed[7,8] mm/s

Pressing Speed[1,7] mm/s

Minimum Vertical Daylight A128 mm

Product LineIndustrial Tools

Weight81 kg

Dimension C1599 mm

Maximum Bed Width456 mm

Max. Vertical Daylight1525 mm

Set IncludesP392,RC1010,GF10B,GA2

Documents & CAD

Series documents 1· shared by this product series

BrochureIP-Series_H-Frame_Presses_EN-AUPDF·328 KB
