Enerpac
Enerpac XA11 700 bar Air Hydraulic Pump
MFR #XA11
SKU #YLSDABWWOBK6K62
Photo may not represent actual item. Refer to name and product specs for all details.

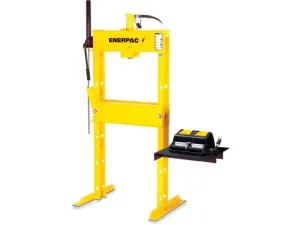

Enerpac IPA1220A 10 Ton H-Frame Hydraulic Press
Enerpac IPA1220A; 10 ton (101 kN) H-frame hydraulic press, 254 mm stroke, 700 bar, with RC1010 single-acting cylinder and XA11 air pump.
Dimension F635 mm
Cylinder Stroke254 mm
Maximum Operating Pressure700 bar
Dimension E456 mm
Dimension D127 mm
Dimension K100 mm
About This Product
IPA1220A is a 10 ton (101 kN) H-frame press from the IP series. It comes with an RC1010 single-acting cylinder and an XA11 air pump. The set includes XA11, RC1010, GF10B and GA2.
Maximum operating pressure is 700 bar and cylinder stroke is 254 mm. Vertical daylight ranges from 128 mm to 1525 mm, and maximum bed width is 456 mm. Rapid advance speed is 23 mm/sec and pressing speed is 2.9 mm/sec. Weight is 81 kg.
It is used for straightening, bending, and press-fit assembly and disassembly in workshop and maintenance environments.
Features and Benefits
- 10 ton (101 kN) press capacity
- 700 bar maximum operating pressure
- 128–1525 mm vertical daylight range and 254 mm cylinder stroke
- 23 mm/sec rapid advance and 2.9 mm/sec pressing speed
- Set includes: XA11, RC1010, GF10B, GA2
Enerpac IPA1220A
- Genuine, certified Enerpac product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Dimension F635 mm
Cylinder Stroke254 mm
Maximum Operating Pressure700 bar
Dimension E456 mm
Dimension D127 mm
Dimension K100 mm
Maximum Vertical Daylight A1525 mm
Dimension J755 mm
Product TypeH-Frame
SeriesIP
Dimension N1829 mm
Dimension M818 mm
Dimension L210 mm
Press Capacity101 kN (10 ton)
Rapid Advance Speed23 mm/s
Pressing Speed2,9 mm/s
Minimum Vertical Daylight A128 mm
Product LineIndustrial Tools
Weight81 kg
Dimension C1599 mm
Maximum Bed Width456 mm
Max. Vertical Daylight1525 mm
Set IncludesXA11,RC1010,GF10B,GA2
