How can I get a price quote for Enerpac HCR50012?

You can request a fast quote for Enerpac HCR50012 from Yılsa Engineering. Reference part number YLSSC5ZLMUUWS73. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac HCR50012 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac HCR50012 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac HCR50012?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

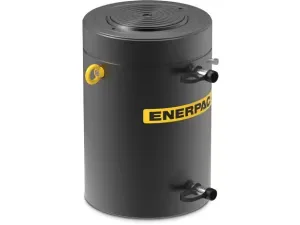

Enerpac HCR50012 575 ton Cylinder

Enerpac HCR50012; 575 ton capacity, 300 mm (11.81 in) stroke, 700 bar (10,000 psi) maximum pressure, double-acting high-tonnage hydraulic cylinder.

EnerpacMFR # HCR50012SKU # YLSSC5ZLMUUWS73

Cylinder Class500 ton

Stroke300 mm (11.81 in)

Collapsed Height (A)594 mm (23.39 in)

Outside Diameter D400 mm (15.75 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U340 mm (13.39 in)

Have questions?Chat on WhatsApp

About This Product

HCR50012 is a double-acting high-tonnage hydraulic cylinder from the HCR series. It has a 575 ton capacity and a 300 mm (11.81 in) stroke with hydraulic return. Maximum working pressure is up to 700 bar (10,000 psi). Collapsed height is 594 mm, outside diameter is 400 mm, base mounting hole bolt circle is 340 mm and weight is 525 kg. The body and plunger have a nitrocarburized surface treatment that resists side-loading and cyclic wear. It is used in high-capacity lifting, lowering and pushing applications. Replaceable upper and lower bearings support the plunger throughout the stroke, and certified lifting eyes and base mounting holes are provided. It complies with ASME B30.1.

Features and Benefits

Double-acting for fast and controlled advance and retract
Nitrocarburized surface resists side-loading and wear
10% side-load resistance over full stroke
Replaceable upper and lower plunger bearings
Certified lifting eyes and base mounting holes
700 bar (10,000 psi) maximum working pressure, ASME B30.1 compliant

Enerpac HCR50012

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class500 ton

Stroke300 mm (11.81 in)

Collapsed Height (A)594 mm (23.39 in)

Outside Diameter D400 mm (15.75 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U340 mm (13.39 in)

Surface TreatmentNitride

Weight525 kg (1,158 lbs)

Oil Capacity (Advance)21918 cm³ (1,337.55 in³)

Base Mounting Holes Thread Depth Z36 mm (1.42 in)

Maximum Operating Pressure700 bar (10,150 psi)

Oil Capacity (Retract)7192 cm³ (438.90 in³)

ApplicationsLift, Lower, Push

Base Mounting Holes Thread VM24 x 3

Maximum Cylinder Capacity (Advance)5114 kN (575 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)305 mm (12.01 in)

Product TypeHigh Tonnage Cylinder

SeriesHCR

Base to Advance Port H79 mm (3.11 in)

Optional Tilt Saddle Diameter (J1)9.06 in

Product LineIndustrial Tools

Collapsed Height with Optional Tilt Saddle (A1)642 mm (25.28 in)

Saddle Maximum Tilt Angle5 degrees

Top to Retract Port (I)121 mm (4.76 in)

Saddle Diameter J179 mm (7.05 in)

Country of OriginUnited States

Saddle Diameter J1230 mm

Extended Height (B)894 mm (35.2 in)

Cylinder Effective Area (Advance)730,6 cm² (113.25 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)48 mm (1.89 in)

Side Load Resistance (of Max. Capacity)10% %

Saddle Protrusion from Plunger K4 mm (0.16 in)

Saddle Protrusion from Plunger K14 mm

Plunger Diameter F250 mm (9.84 in)

Documents & CAD

Series documents 2· shared by this product series

Repair Parts SheetHigh Tonnage Hydraulic Cylinders, HCR SeriesPDF·6.8 MB·English

BrochureHCR-Series High-Tonnage Cylinders; EnglishPDF·243 KB

CAD Files 3

3D Model
