How can I get a price quote for Enerpac HCR10006?

You can request a fast quote for Enerpac HCR10006 from Yılsa Engineering. Reference part number YLSKX416K7PSRU1. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac HCR10006 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac HCR10006 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac HCR10006?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

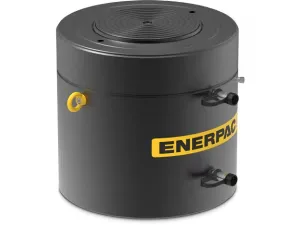

Enerpac HCR10006 1196 ton Double-Acting Cylinder

Enerpac HCR10006; 1196 ton capacity, 150 mm stroke, 700 bar max pressure, double-acting high tonnage hydraulic cylinder.

EnerpacMFR # HCR10006SKU # YLSKX416K7PSRU1

Cylinder Class1000 ton

Stroke150 mm (5.91 in)

Collapsed Height (A)542 mm (21.34 in)

Outside Diameter D570 mm (22.44 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U500 mm (19.69 in)

Have questions?Chat on WhatsApp

About This Product

HCR10006 is a double-acting high tonnage hydraulic cylinder from the HCR series. The 1196 ton cylinder has a 150 mm stroke, 542 mm collapsed height, 570 mm outside diameter and a weight of 1000 kg. The hydraulic return design provides fast and controlled plunger advance and retract. The body and plunger have a nitrocarburized surface that resists side-loading and cyclic wear. Maximum working pressure is 700 bar (10,000 psi) and the cylinder complies with ASME B30.1. Base mounting holes are on a 500 mm bolt circle. It is used for lifting, lowering and pushing in large-scale construction and heavy load projects.

Features and Benefits

1196 ton capacity, 150 mm stroke
Double-acting for fast and controlled advance and retract
Nitrocarburized surface resists side-loading and cyclic wear
10% side-load resistance over the full stroke
Replaceable upper and lower bearings, certified lifting eyes, base mounting holes
700 bar (10,000 psi) max working pressure; complies to ASME B30.1

Enerpac HCR10006

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class1000 ton

Stroke150 mm (5.91 in)

Collapsed Height (A)542 mm (21.34 in)

Outside Diameter D570 mm (22.44 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U500 mm (19.69 in)

Surface TreatmentNitride

Weight1000 kg (2,205 lbs)

Oil Capacity (Advance)22808 cm³ (1,391.83 in³)

Base Mounting Holes Thread Depth Z36 mm (1.42 in)

Maximum Operating Pressure700 bar (10,150 psi)

Oil Capacity (Retract)9189 cm³ (560.76 in³)

ApplicationsLift, Lower, Push

Base Mounting Holes Thread VM24 x 3

Maximum Cylinder Capacity (Advance)10644 kN (1196 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)440 mm (17.32 in)

Product TypeHigh Tonnage Cylinder

SeriesHCR

Base to Advance Port H114 mm (4.49 in)

Optional Tilt Saddle Diameter (J1)11.81 in

Product LineIndustrial Tools

Collapsed Height with Optional Tilt Saddle (A1)619 mm (24.37 in)

Saddle Maximum Tilt Angle5 degrees

Top to Retract Port (I)153 mm (6.02 in)

Saddle Diameter J249 mm (9.8 in)

Country of OriginNetherlands

Saddle Diameter J1300 mm

Extended Height (B)692 mm (27.24 in)

Cylinder Effective Area (Advance)1520,5 cm² (235.68 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)77 mm (3.03 in)

Side Load Resistance (of Max. Capacity)10% %

Saddle Protrusion from Plunger K4 mm (0.16 in)

Saddle Protrusion from Plunger K14 mm

Plunger Diameter F340 mm (13.39 in)

Documents & CAD

Series documents 2· shared by this product series

Repair Parts SheetHigh Tonnage Hydraulic Cylinders, HCR SeriesPDF·6.8 MB·English

BrochureHCR-Series High-Tonnage Cylinders; EnglishPDF·243 KB

CAD Files 3

3D Model
