How can I get a price quote for Enerpac HCR100012?

You can request a fast quote for Enerpac HCR100012 from Yılsa Engineering. Reference part number YLSBE3VGMR9JN80. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac HCR100012 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac HCR100012 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac HCR100012?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

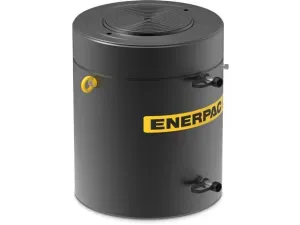

Enerpac HCR100012 1196 ton Hydraulic Cylinder

Enerpac HCR100012; 1196 ton capacity, 300 mm stroke, up to 700 bar working pressure, double-acting high tonnage hydraulic cylinder.

EnerpacMFR # HCR100012SKU # YLSBE3VGMR9JN80

Cylinder Class1000 ton

Stroke300 mm (11.81 in)

Collapsed Height (A)692 mm (27.24 in)

Outside Diameter D570 mm (22.44 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U500 mm (19.69 in)

Have questions?Chat on WhatsApp

About This Product

HCR100012 is a double-acting hydraulic cylinder from the Enerpac HCR high tonnage series. It offers 1196 ton capacity and a 300 mm (11.81 in) stroke. The hydraulic return retracts the plunger faster and with more control than load or gravity return equivalents. Collapsed height is 692 mm, outside diameter 570 mm, base mounting hole bolt circle 500 mm and weight 1236 kg. The body and plunger have a nitrocarburized finish, and maximum working pressure is up to 700 bar (10,000 psi). It is used for lifting, lowering and pushing in large-scale construction and heavy industrial work. It complies with ASME B30.1.

Features and Benefits

Double-acting for fast and controlled advance and retract
Nitrocarburized surface resists side-loading and cyclic wear
10% side-load resistance over full cylinder stroke
Upper and lower replaceable bearings support the plunger throughout the stroke
Weather protected, inside and out
Certified lifting eyes, base mounting holes and up to 700 bar working pressure; complies to ASME B30.1

Enerpac HCR100012

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class1000 ton

Stroke300 mm (11.81 in)

Collapsed Height (A)692 mm (27.24 in)

Outside Diameter D570 mm (22.44 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U500 mm (19.69 in)

Surface TreatmentNitride

Weight1236 kg (2,726 lbs)

Oil Capacity (Advance)45616 cm³ (2,783.65 in³)

Base Mounting Holes Thread Depth Z36 mm (1.42 in)

Maximum Operating Pressure700 bar (10,150 psi)

Oil Capacity (Retract)18378 cm³ (1121.51 in³)

ApplicationsLift, Lower, Push

Base Mounting Holes Thread VM24 x 3

Maximum Cylinder Capacity (Advance)10644 kN (1196 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)440 mm (17.32 in)

Product TypeHigh Tonnage Cylinder

SeriesHCR

Base to Advance Port H114 mm (4.49 in)

Optional Tilt Saddle Diameter (J1)11.81 in

Product LineIndustrial Tools

Collapsed Height with Optional Tilt Saddle (A1)769 mm (30.28 in)

Saddle Maximum Tilt Angle5 degrees

Top to Retract Port (I)153 mm (6.02 in)

Saddle Diameter J249 mm (9.8 in)

Country of OriginNetherlands

Saddle Diameter J1300 mm

Extended Height (B)992 mm (39.06 in)

Cylinder Effective Area (Advance)1520,5 cm² (235.68 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)77 mm (3.03 in)

Side Load Resistance (of Max. Capacity)10% %

Saddle Protrusion from Plunger K4 mm (0.16 in)

Saddle Protrusion from Plunger K14 mm

Plunger Diameter F340 mm (13.39 in)

Documents & CAD

Series documents 2· shared by this product series

Repair Parts SheetHigh Tonnage Hydraulic Cylinders, HCR SeriesPDF·6.8 MB·English

BrochureHCR-Series High-Tonnage Cylinders; EnglishPDF·243 KB

CAD Files 2

3D Model
