How can I get a price quote for Enerpac HCR502?

You can request a fast quote for Enerpac HCR502 from Yılsa Engineering. Reference part number YLSCXI24TU7DDLD. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac HCR502 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac HCR502 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac HCR502?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

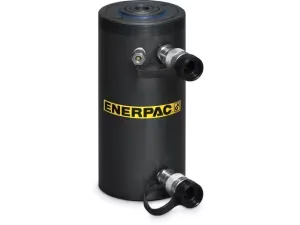

Enerpac HCR502 62 ton Hydraulic Cylinder

Enerpac HCR502; 62 ton capacity, 50 mm stroke, up to 700 bar working pressure, double-acting high tonnage hydraulic cylinder.

EnerpacMFR # HCR502SKU # YLSCXI24TU7DDLD

Cylinder Class50 ton

Stroke50 mm (1.97 in)

Collapsed Height (A)183 mm (7.2 in)

Outside Diameter D130 mm (5.12 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U105 mm (4.13 in)

Have questions?Chat on WhatsApp

About This Product

HCR502 is a double-acting high tonnage hydraulic cylinder from the HCR series. It has a 62 ton capacity and a 50 mm (1.97 in) stroke. Its hydraulic return design provides fast and controlled plunger advance and retract. It has a collapsed height of 183 mm, an outside diameter of 130 mm, a base mounting bolt circle of 105 mm and a weight of 17 kg. This model includes an M130 x 2 collar thread. The body and plunger have a nitrocarburized surface, and the working pressure is up to 700 bar (10,000 psi). It is used for lifting, lowering and pushing. It complies with ASME B30.1.

Features and Benefits

Double-acting design for fast and controlled advance and retract
Nitrocarburized surface resists side-loading and cyclic wear
10% side-load resistance over the full stroke
Replaceable upper and lower plunger bearings
Certified lifting eyes, base mounting holes and M130 x 2 collar thread
Working pressure up to 700 bar (10,000 psi); ASME B30.1 compliant

Enerpac HCR502

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class50 ton

Stroke50 mm (1.97 in)

Collapsed Height (A)183 mm (7.2 in)

Outside Diameter D130 mm (5.12 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U105 mm (4.13 in)

Collar Thread (W)M130 x 2

Surface TreatmentNitride

Weight17 kg (37 lbs)

Oil Capacity (Advance)393 cm³ (23.96 in³)

Base Mounting Holes Thread Depth Z22 mm (0.87 in)

Maximum Operating Pressure700 bar (10,150 psi)

Oil Capacity (Retract)200 cm³ (12.22 in³)

ApplicationsLift, Lower, Push

Base Mounting Holes Thread VM12 x 1,75

Maximum Cylinder Capacity (Advance)550 kN (62 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)100 mm (3.94 in)

Product TypeHigh Tonnage Cylinder

SeriesHCR

Base to Advance Port H38 mm (1.5 in)

Optional Tilt Saddle Diameter (J1)2.8 in

Product LineIndustrial Tools

Collapsed Height with Optional Tilt Saddle (A1)197 mm (7.76 in)

Saddle Maximum Tilt Angle5 degrees

Top to Retract Port (I)45 mm (1.77 in)

Saddle Diameter J50 mm (1.97 in)

Country of OriginChina

Collar Thread Length (X)30 mm (1.18 in)

Saddle Diameter J171 mm

Extended Height (B)233 mm (9.17 in)

Cylinder Effective Area (Advance)78,5 cm² (12.17 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)14 mm (0.55 in)

Side Load Resistance (of Max. Capacity)10% %

Saddle Protrusion from Plunger K3 mm (0.12 in)

Saddle Protrusion from Plunger K13 mm

Plunger Diameter F70 mm (2.76 in)

Documents & CAD

Series documents 3· shared by this product series

Instruction ManualHigh Tonnage Hydraulic Cylinders, HCG and HCR SeriesPDF·3.7 MB

Repair Parts SheetHigh Tonnage Hydraulic Cylinders, HCR SeriesPDF·2.1 MB·English

BrochureHCR-Series High-Tonnage Cylinders; EnglishPDF·243 KB

CAD Files 3

3D Model
