How can I get a price quote for Enerpac GBJ030A?

You can request a fast quote for Enerpac GBJ030A from Yılsa Engineering. Reference part number CEY-937FC78066FC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac GBJ030A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac GBJ030A genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac GBJ030A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

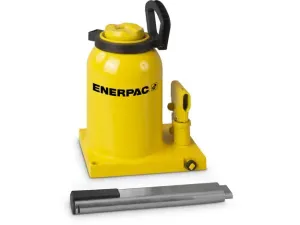

Enerpac GBJ030A 30 ton bottle jack

Enerpac GBJ030A; 30 ton (294 kN) capacity, 150 mm stroke, 242 mm collapsed height, industrial hydraulic bottle jack.

EnerpacMFR # GBJ030ASKU # CEY-937FC78066FC

Capacity294,0 kN (30 ton · 33 ton)

Country of OriginSpain

Screw Extension2.95 in

ApplicationsLift

Saddle Diameter69,0 mm (2.72 in)

Product TypeBottle Jack

Have questions?Chat on WhatsApp

About This Product

The GBJ030A is a 30 ton (294 kN) industrial hydraulic bottle jack from the Enerpac GBJ series. It offers a 150 mm stroke, with a collapsed height of 242 mm and an extended height of 467 mm. Plunger diameter is 58 mm, oil capacity is 800 cm³, screw extension is 75 mm and saddle diameter is 69 mm. The base plate measures 144 x 196 mm and the jack weighs 15.5 kg. It is used in lifting applications. The pump swivels, and the telescopic handle stores compactly on the jack.

Features and Benefits

30 ton (294 kN) capacity, 150 mm stroke
Positioning handle included
Swivelling pump for ease of use and improved ergonomics
Telescopic handle stores compactly on the jack
Safety relief valve prevents overload
Automatic by-pass port prevents over-extension

Enerpac GBJ030A

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Capacity294,0 kN (30 ton · 33 ton)

Country of OriginSpain

Screw Extension2.95 in

ApplicationsLift

Saddle Diameter69,0 mm (2.72 in)

Product TypeBottle Jack

Screw Extension75 mm

SeriesGBJ

Oil Capacity800 cm³ (27.05 oz)

Bottom Plate Dimensions (W x L)144 x 196 mm (5.67 x 7.72 in)

Stroke150 mm (5.91 in)

Extended Height467 mm (18.39 in)

Plunger Diameter58 mm (2.27 in)

Product LineIndustrial Tools

Weight15,5 kg (34.2 lbs)

Collapsed Height242 mm (9.53 in)

Documents & CAD

For this product 1

Instruction ManualGBJ Series Hydraulic Bottle JacksPDF·16.7 MB 4 languages· in one file

Series documents 3· shared by this product series

Repair Parts SheetGBJ Series Hydraulic Bottle Jacks RPSPDF·416 KB·English

CertificateEC2A-BottleJacks-GBJ_RevC_Feb2024PDF·135 KB

BrochureGBJ-Series Steel Bottle Jacks; EnglishPDF·391 KB
