How can I get a price quote for Enerpac GBJ015A?

You can request a fast quote for Enerpac GBJ015A from Yılsa Engineering. Reference part number CEY-55221B12DC80. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac GBJ015A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac GBJ015A genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac GBJ015A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

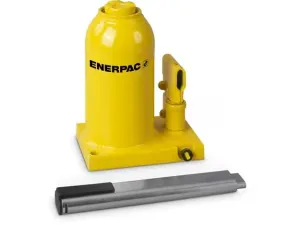

Enerpac GBJ015A 15 ton hydraulic bottle jack

Enerpac GBJ015A; hydraulic industrial bottle jack with 15 ton (147 kN) capacity, 150 mm stroke and 228–453 mm working height range.

EnerpacMFR # GBJ015ASKU # CEY-55221B12DC80

Capacity147,0 kN (15 ton · 17 ton)

Country of OriginSpain

Screw Extension2.95 in

ApplicationsLift

Saddle Diameter45,0 mm (1.77 in)

Product TypeBottle Jack

Have questions?Chat on WhatsApp

About This Product

GBJ015A is a hydraulic industrial bottle jack from the Enerpac GBJ series with 15 ton (147 kN; 17 imperial ton) capacity. It offers a 150 mm (5.91 in) stroke, with 228 mm collapsed and 453 mm extended height. The pump swivels for easier handling. Plunger diameter is 45 mm, screw extension 75 mm, oil capacity 410 cm³ and weight 8.8 kg. The base plate measures 112 x 163 mm. It is used for lifting in workshop, maintenance and service environments.

Features and Benefits

Swivelling pump for ease of use and improved ergonomics
Lower handle effort reduces operator fatigue
Safety relief valve prevents overload
Automatic by-pass port prevents over-extension
High-strength beam and pump linkage for long life
Thick, large-area base for strength and stability during lifting

Enerpac GBJ015A

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Capacity147,0 kN (15 ton · 17 ton)

Country of OriginSpain

Screw Extension2.95 in

ApplicationsLift

Saddle Diameter45,0 mm (1.77 in)

Product TypeBottle Jack

Screw Extension75 mm

SeriesGBJ

Oil Capacity410 cm³ (13.86 oz)

Bottom Plate Dimensions (W x L)112 x 163 mm (4.41 x 6.42 in)

Stroke150 mm (5.91 in)

Extended Height453 mm (17.83 in)

Plunger Diameter45 mm (1.75 in)

Product LineIndustrial Tools

Weight8,8 kg (19.4 lbs)

Collapsed Height228 mm (8.98 in)

Documents & CAD

For this product 1

Instruction ManualGBJ Series Hydraulic Bottle JacksPDF·16.7 MB 4 languages· in one file

Series documents 3· shared by this product series

Repair Parts SheetGBJ Series Hydraulic Bottle Jacks RPSPDF·416 KB·English

CertificateEC2A-BottleJacks-GBJ_RevC_Feb2024PDF·135 KB

BrochureGBJ-Series Steel Bottle Jacks; EnglishPDF·391 KB
