How can I get a price quote for Enerpac GBJ010SA?

You can request a fast quote for Enerpac GBJ010SA from Yılsa Engineering. Reference part number CEY-55221B12DA79. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac GBJ010SA in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac GBJ010SA genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac GBJ010SA?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

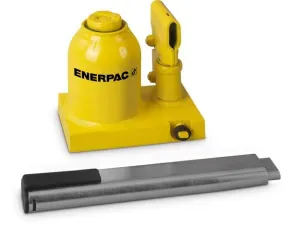

Enerpac GBJ010SA 10 ton hydraulic bottle jack

Enerpac GBJ010SA; low-height hydraulic industrial bottle jack with 10 ton (98.0 kN) capacity, 62 mm stroke and 131–223 mm working height range.

EnerpacMFR # GBJ010SASKU # CEY-55221B12DA79

Capacity98,0 kN (10 ton · 11 ton)

Country of OriginSpain

Screw Extension1.18 in

ApplicationsLift

Saddle Diameter38,0 mm (1.50 in)

Product TypeBottle Jack

Have questions?Chat on WhatsApp

About This Product

GBJ010SA is a hydraulic industrial bottle jack from the Enerpac GBJ series with 10 ton (98.0 kN; 11 imperial ton) capacity. With a 62 mm (2.44 in) stroke, 131 mm collapsed and 223 mm extended height, it suits lifting in tight spaces. The pump swivels for easier handling. Plunger diameter is 37 mm, screw extension 30 mm, oil capacity 260 cm³ and weight 5 kg. The base plate measures 90 x 144 mm. It is used in workshop, maintenance and service applications.

Features and Benefits

Swivelling pump for ease of use and improved ergonomics
Lower handle effort reduces operator fatigue
Safety relief valve prevents overload
Automatic by-pass port prevents over-extension
High-strength beam and pump linkage for long life
Thick, large-area base for strength and stability during lifting

Enerpac GBJ010SA

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Capacity98,0 kN (10 ton · 11 ton)

Country of OriginSpain

Screw Extension1.18 in

ApplicationsLift

Saddle Diameter38,0 mm (1.50 in)

Product TypeBottle Jack

Screw Extension30 mm

SeriesGBJ

Oil Capacity260 cm³ (8.79 oz)

Bottom Plate Dimensions (W x L)90 x 144 mm (3.54 x 5.67 in)

Stroke62 mm (2.44 in)

Extended Height223 mm (8.78 in)

Plunger Diameter37 mm (1.46 in)

Product LineIndustrial Tools

Weight5 kg (11 lbs)

Collapsed Height131 mm (5.16 in)

Documents & CAD

For this product 1

Instruction ManualGBJ Series Hydraulic Bottle JacksPDF·16.7 MB 4 languages· in one file

Series documents 3· shared by this product series

Repair Parts SheetGBJ Series Hydraulic Bottle Jacks RPSPDF·416 KB·English

CertificateEC2A-BottleJacks-GBJ_RevC_Feb2024PDF·135 KB

BrochureGBJ-Series Steel Bottle Jacks; EnglishPDF·391 KB

CAD Files 2

3D Model
