How can I get a price quote for Enerpac GBJ010A?

You can request a fast quote for Enerpac GBJ010A from Yılsa Engineering. Reference part number CEY-55221B12BF33. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac GBJ010A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac GBJ010A genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac GBJ010A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

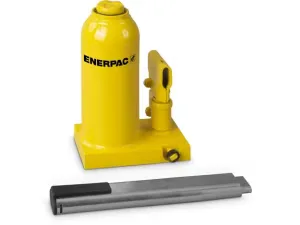

Enerpac GBJ010A 10 ton hydraulic bottle jack

Enerpac GBJ010A; hydraulic industrial bottle jack with 10 ton (98.0 kN) capacity, 150 mm stroke and 219–444 mm working height range.

EnerpacMFR # GBJ010ASKU # CEY-55221B12BF33

Capacity98,0 kN (10 ton · 11 ton)

Country of OriginSpain

Screw Extension2.95 in

ApplicationsLift

Saddle Diameter38,0 mm (1.50 in)

Product TypeBottle Jack

Have questions?Chat on WhatsApp

About This Product

GBJ010A is a hydraulic industrial bottle jack from the Enerpac GBJ series with 10 ton (98.0 kN; 11 imperial ton) capacity. It offers a 150 mm (5.91 in) stroke, with 219 mm collapsed and 444 mm extended height. The pump swivels for easier handling. Plunger diameter is 37 mm, screw extension 75 mm, oil capacity 275 cm³ and weight 6.4 kg. The base plate measures 90 x 144 mm. It is used for lifting in workshop, maintenance and service environments.

Features and Benefits

Swivelling pump for ease of use and improved ergonomics
Lower handle effort reduces operator fatigue
Safety relief valve prevents overload
Automatic by-pass port prevents over-extension
High-strength beam and pump linkage for long life
Thick, large-area base for strength and stability during lifting

Enerpac GBJ010A

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Capacity98,0 kN (10 ton · 11 ton)

Country of OriginSpain

Screw Extension2.95 in

ApplicationsLift

Saddle Diameter38,0 mm (1.50 in)

Product TypeBottle Jack

Screw Extension75 mm

SeriesGBJ

Oil Capacity275 cm³ (9.29 oz)

Bottom Plate Dimensions (W x L)90 x 144 mm (3.54 x 5.67 in)

Stroke150 mm (5.91 in)

Extended Height444 mm (17.48 in)

Plunger Diameter37 mm (1.46 in)

Product LineIndustrial Tools

Weight6,4 kg (14.1 lbs)

Collapsed Height219 mm (8.62 in)

Documents & CAD

For this product 2

Instruction ManualGBJ Series Hydraulic Bottle JacksPDF·16.7 MB 4 languages· in one file

Repair Parts SheetGBJ Series Hydraulic Bottle Jacks RPSPDF·416 KB·English

Series documents 2· shared by this product series

CertificateEC2A-BottleJacks-GBJ_RevC_Feb2024PDF·135 KB

BrochureGBJ-Series Steel Bottle Jacks; EnglishPDF·391 KB

CAD Files 3

3D Model

Alternative Names & Search Terms

GBJ010AGBJ 010AGBJ-010AEnerpac GBJ010AEnerpac GBJ 010AGBJ010A bottle jackGBJ010A hydraulic jackGBJ010A industrial bottle jackEnerpac GBJ seriesEnerpac GBJ bottle jackEnerpac industrial bottle jack10 ton hydraulic bottle jack10 ton bottle jack11 ton hydraulic bottle jack10 ton hydraulic jackEnerpac 10 ton hydraulic jack98 kN hydraulic jack150 mm stroke bottle jackindustrial hydraulic bottle jack
