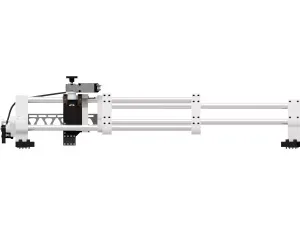

Enerpac F0152C0004XX-SK PSL Profile Slide with Counterbore

Enerpac F0152C0004XX-SK; PSL profile slide attachment with counterbore for 660.4–1270.0 mm (26–50 in) clamshell diameters, cuts up to 127.0 mm (5 in) wall.

EnerpacMFR # F0152C0004XX-SKSKU # YLSJ2SHVECCIOXR

Dimension C1150.6-1473.2 mm (45.3-58 in)

Dimension B800.1 mm (31.5 in)

Product TypeProfile Slide

Dimension A749.3 mm (29.5 in)

Product LineMachining Tools

Have questions?Chat on WhatsApp

About This Product

F0152C0004XX-SK is the PSL profile slide attachment with counterbore for 660.4–1270.0 mm (26–50 in) clamshell diameters. It uses one pair of fixed length shafts and two pairs of adjustable length shafts. Dimensions are A 749.3 mm, B 800.1 mm and C 1150.6–1473.2 mm. The profile slide is an automated method of single point cutting a weld prep on the end of a pipe using a template, which is especially useful on heavy wall weld preps. It is fed a predetermined amount per clamshell revolution and cuts up to 127.0 mm (5 in) wall with standard templates. It bolts to the face of the clamshell and can be mounted on all NB, MS and HD clamshells from 203.2 mm (8 in) to 1270 mm (50 in).

Features and Benefits

Version with counterbore; for 660.4–1270.0 mm (26–50 in) clamshell diameters
Uses one pair of fixed and two pairs of adjustable length shafts
Cuts up to 127.0 mm (5 in) wall with standard templates
Produces safe hands-free weld preps
Bolts directly to clamshells using quick slide or standard bolt hole configuration
Cable fed counterbore automates the process and improves safety
