How can I get a price quote for Enerpac ER60?

You can request a fast quote for Enerpac ER60 from Yılsa Engineering. Reference part number CEY-7B4B2D998BC1. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac ER60 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac ER60 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac ER60?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac ER60 60 Ton Machine Skate

Enerpac ER60; 60 ton (533 kN) capacity, 13 rollers and 4 contact rolls, 31.9 kg weight; heavy-duty, low-profile chain roller machine skate for load moving.

EnerpacMFR # ER60SKU # CEY-7B4B2D998BC1

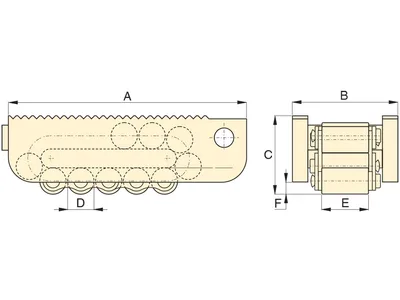

Dimension E76 mm (3 in)

Country of OriginGermany

Dimension F16 mm (0.63 in)

Dimension D42 mm (1.65 in)

Dimension C125 mm (4.94 in)

Contact Rolls per Skate4

Have questions?Chat on WhatsApp

About This Product

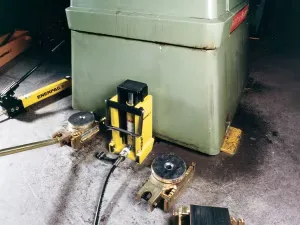

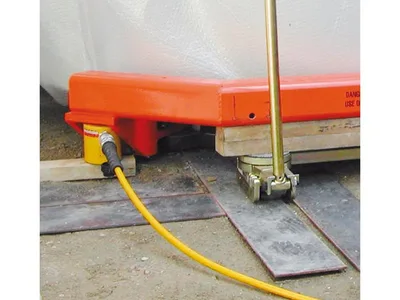

The ER60 is a heavy-duty chain roller machine skate from the Enerpac ER series. The load travels on a series of steel rollers. The low profile improves stability, and low rolling resistance makes the load easy to move. The skate is rated at 60 ton (533 kN). Each skate has 13 rollers and 4 contact rolls. It weighs 31.9 kg (70.4 lb), with dimension A of 380 mm, B of 168 mm and C of 125 mm. Country of origin is Germany. It is used to move high-tonnage machines, presses and heavy equipment within facilities. It can be combined with ELP load leveling plates and with ES swivel turntables for turning corners. Complete ERS machine skate sets are also available.

Features and Benefits

60 ton (533 kN) load capacity
Rugged and sturdy construction for long life
Low-profile construction for increased stability
Low rolling resistance for easy load movement
13 steel rollers, 4 contact rolls
Compatible with ELP leveling plates and ES swivel turntables

Enerpac ER60

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E76 mm (3 in)

Country of OriginGermany

Dimension F16 mm (0.63 in)

Dimension D42 mm (1.65 in)

Dimension C125 mm (4.94 in)

Contact Rolls per Skate4

Capacity533 kN (60 ton)

Dimension B168 mm (6.63 in)

ApplicationsTransport

Dimension A380 mm (15 in)

Product LineIndustrial Tools

Rollers per Skate13

Weight31,9 kg (70.4 lbs)

Dimension H0.63 in

Product TypeMachine Skate

Dimension G3 in

SeriesER

Documents & CAD

For this product 1

Instruction ManualRollersPDF·387 KB 3 languages· in one file

Series documents 1· shared by this product series

BrochureEL-ER-ES-Series Heavy-Duty Load Skates; EnglishPDF·461 KB
