How can I get a price quote for Enerpac ER30?

You can request a fast quote for Enerpac ER30 from Yılsa Engineering. Reference part number CEY-8EF3B0345B70. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac ER30 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac ER30 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac ER30?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

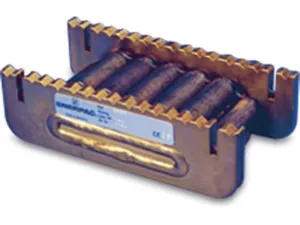

Enerpac ER30 30 Ton Machine Skate

Enerpac ER30; 30 ton (267 kN) capacity, 13 rollers and 4 contact rolls, 13.0 kg weight; heavy-duty, low-profile caterroller machine skate for load moving.

EnerpacMFR # ER30SKU # CEY-8EF3B0345B70

Dimension E68 mm (2.69 in)

Country of OriginGermany

Dimension F10 mm (0.39 in)

Dimension D30 mm (1.18 in)

Dimension C92 mm (3.63 in)

Contact Rolls per Skate4

Have questions?Chat on WhatsApp

About This Product

The ER30 is a heavy-duty machine skate from the Enerpac ER series. In this chain roller (caterroller) design the load travels on a series of steel rollers. The low profile improves stability, and low rolling resistance makes the load easy to move. The skate is rated at 30 ton (267 kN). Each skate has 13 rollers and 4 contact rolls. It weighs 13.0 kg (28.6 lb), with dimension A of 270 mm, B of 130 mm and C of 92 mm. Country of origin is Germany. It is used to move and position heavy machinery and equipment within facilities. It can be combined with ELP load leveling plates and with ES swivel turntables for turning corners. Complete ERS machine skate sets are also available.

Features and Benefits

30 ton (267 kN) load capacity
Rugged and sturdy construction for long life
Low-profile construction for increased stability
Low rolling resistance for easy load movement
13 steel rollers, 4 contact rolls
Compatible with ELP leveling plates and ES swivel turntables

Enerpac ER30

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E68 mm (2.69 in)

Country of OriginGermany

Dimension F10 mm (0.39 in)

Dimension D30 mm (1.18 in)

Dimension C92 mm (3.63 in)

Contact Rolls per Skate4

Capacity267 kN (30 ton)

Dimension B130 mm (5.13 in)

ApplicationsTransport

Dimension A270 mm (10.63 in)

Product LineIndustrial Tools

Rollers per Skate13

Weight13,0 kg (28.6 lbs)

Dimension H0.39 in

Product TypeMachine Skate

Dimension G2.69 in

SeriesER

Documents & CAD

Series documents 2· shared by this product series

Instruction ManualRollersPDF·387 KB 3 languages· in one file

BrochureEL-ER-ES-Series Heavy-Duty Load Skates; EnglishPDF·461 KB

Alternative Names & Search Terms

ER30ER-30ER 30er30Enerpac ER30Enerpac ER-30Enerpac ER 30ER30 machine skateER30 load skateER30 caterrollerEnerpac ER seriesEnerpac ER series machine skateEnerpac machine skate30 ton machine skate30 ton load skate30 ton caterroller267 kN machine skatechain roller load skateroller skidheavy-duty machine moving skatelow-profile machine skate
