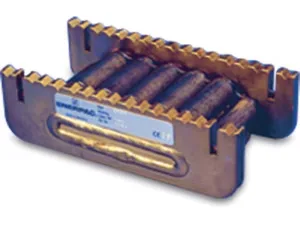

Enerpac ER15 15 Ton Machine Skate

Enerpac ER15; 15 ton (133 kN) capacity, 13 rollers and 4 contact rolls, 7.3 kg weight; heavy-duty, low-profile caterroller machine skate for load moving.

EnerpacMFR # ER15SKU # CEY-8EF3B0345B71

Dimension E60 mm (2.38 in)

Country of OriginGermany

Dimension F10 mm (0.39 in)

Dimension D24 mm (0.94 in)

Dimension C75 mm (2.95 in)

Contact Rolls per Skate4

Have questions?Chat on WhatsApp

About This Product

The ER15 is a heavy-duty machine skate from the Enerpac ER series. This design is also known as a chain roller or caterroller. The load travels on a series of steel rollers. The low-profile body improves stability, and low rolling resistance makes the load easy to move. The skate is rated at 15 ton (133 kN). Each skate has 13 rollers and 4 contact rolls. It weighs 7.3 kg (16 lb), with dimension A of 220 mm, B of 115 mm and C of 75 mm. Country of origin is Germany. It is used to move and position heavy machinery such as machine tools and presses inside plants. It can be combined with ELP load leveling plates and with ES swivel turntables for turning corners. Complete ERS machine skate sets are also available.

Features and Benefits

15 ton (133 kN) load capacity
Rugged and sturdy construction for long life
Low-profile construction for increased stability
Low rolling resistance for easy load movement
13 steel rollers, 4 contact rolls
Compatible with ELP leveling plates and ES swivel turntables

Enerpac ER15

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E60 mm (2.38 in)

Country of OriginGermany

Dimension F10 mm (0.39 in)

Dimension D24 mm (0.94 in)

Dimension C75 mm (2.95 in)

Contact Rolls per Skate4

Capacity133 kN (15 ton)

Dimension B115 mm (4.45 in)

ApplicationsTransport

Dimension A220 mm (8.69 in)

Product LineIndustrial Tools

Rollers per Skate13

Weight7,3 kg (16 lbs)

Dimension H0.39 in

Product TypeMachine Skate

Dimension G2.38 in

SeriesER

Documents & CAD

For this product 1

Instruction ManualRollersPDF·387 KB 3 languages· in one file

Series documents 1· shared by this product series

BrochureEL-ER-ES-Series Heavy-Duty Load Skates; EnglishPDF·461 KB
