How can I get a price quote for Enerpac CR100S?

You can request a fast quote for Enerpac CR100S from Yılsa Engineering. Reference part number YLS3MNOPTFJI3N3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac CR100S in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac CR100S genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac CR100S?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac CR100S 100 ton Cribbing Ring Set

Enerpac CR100S; 100 ton, 57 mm stroke, 308 mm max stackable height, Cribbing Ring Set with 4 U-Rings and 3 spacers for RCS1002 cylinders.

EnerpacMFR # CR100SSKU # YLS3MNOPTFJI3N3

U-Ring Height S42 mm

Cylinder Stroke57 mm (2.25 in)

Cylinder Base Height (A2)140 mm (5.52 in)

Contact Area Diameter E143 mm (5.63 in)

U-Ring Height S1.65 in

Height with 1 U-Ring (C)182 mm (7.17 in)

Have questions?Chat on WhatsApp

About This Product

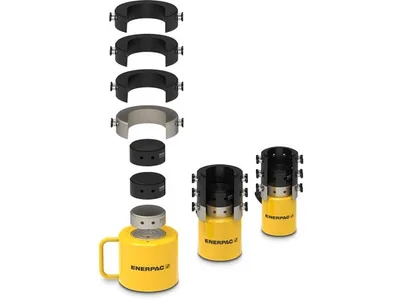

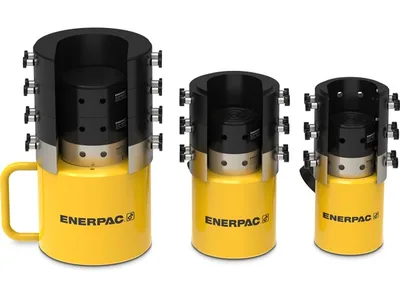

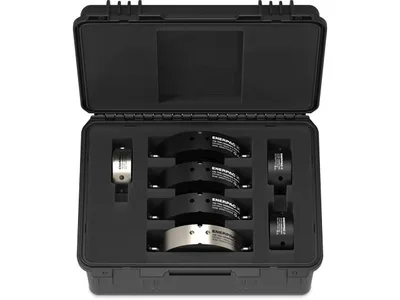

CR100S is a 100 ton Cribbing Ring Set designed for RCS1002 cylinders. CR-series Cribbing Rings replace traditional cribbing methods; each component is dimensionally consistent and engineered to work together. The set includes 4 U-Rings and 3 spacers: CR100U1 (1), CR100U2 (3), CR100P1 (1), CR100P2 (2). Cylinder stroke is 57 mm, collapsed height 141 mm, and complete set height and max stackable height are 308 mm (12.12 in). With the complete set plus 1 U-Ring the height is 350 mm. Set weight is 25 kg and a single U-Ring weighs 3.5 kg. Interlocking U-Rings support the load and secure it mechanically, while stacking spacers extend cylinder reach. The bottom U-Ring can also be used as a loadholding device. It provides a predictable foundation for critical lifts.

Features and Benefits

Stacking spacers extend cylinder reach and secure it mechanically with Cribbing Rings
Interlocking U-Rings support and secure the load
Fork design with integrated interlocking pin system enables right-first-time placement and keeps hands clear of the load
Ergonomic grip allows faster, safer U-Ring placement in tight or awkward spaces
Bottom U-Ring can also be used as a loadholding device
308 mm max stackable height; 25 kg total set weight

Enerpac CR100S

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

U-Ring Height S42 mm

Cylinder Stroke57 mm (2.25 in)

Cylinder Base Height (A2)140 mm (5.52 in)

Contact Area Diameter E143 mm (5.63 in)

U-Ring Height S1.65 in

Height with 1 U-Ring (C)182 mm (7.17 in)

Compatible Cylinder SeriesRCS1002

Set Weight25,0 kg (55.1 lbs)

Max. Stackable Height308 mm (12.12 in)

Product TypeCribbing Ring Set

Height with Complete Set (B)308 mm

Weight 1 U-Ring3,5 kg

SeriesCR

Height with Complete Set B12.12 in

Cylinder Collapsed Height A1141 mm

U-Ring Outside Diameter D171 mm

Cylinder Collapsed Height (A1)5.56 in

Total Stack Height F6.6 in

Product LineIndustrial Tools

Weight25 kg (55.1 lbs)

Height with Complete Set + 1 U-Ring350 mm (13.77 in)

Total Stack Height F168 mm

Weight (1U Ring)7.7 lbs

U-Ring Outside Diameter D6.73 in

Documents & CAD

Series documents 2· shared by this product series

Instruction ManualEnerpac CR30S, CR50S, CR100S Cribbing Ring Set OMMPDF·2.0 MB

BrochureCR-Series_Cribbing_Rings_for_RCS_RUPDF·837 KB
