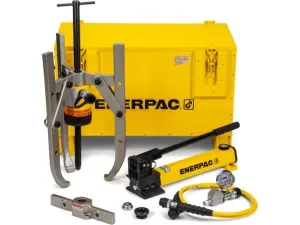

Enerpac BHP251G 24 Ton Grip Puller Set

Enerpac BHP251G; 24 ton capacity, 300 mm max. reach, 700 bar operating pressure, hydraulic grip puller set with hand pump.

EnerpacMFR # BHP251GSKU # CEY-55221B14AE3F

Country of OriginChina

Adjusting Screw Length675 mm

Power SourceHydraulic

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsPull

Maximum Reach300 mm

Have questions?Chat on WhatsApp

About This Product

BHP251G is a complete set combining a 24 ton hydraulic grip puller with a hand pump. The set consists of the P392 hand pump, RCH202 cylinder, GA45GC, HC7206C hose and the BHP252 grip puller. Maximum operating pressure is 700 bar (10,000 psi). Maximum reach is 300 mm, 2-jaw spread range is 400 mm and 3-jaw spread range is 499 mm. The adjusting screw is 675 mm long with a 1" - 8 UNC thread. Jaw thickness is 20 mm, jaw width 27 mm, and set weight is 56 kg (123 lb). It is used in maintenance and repair shops for controlled removal of bearings, gears, pulleys and couplings from shafts. Do not exceed 50% of the rated capacity when using a double crosshead (2 grip arms) or when using puller legs in combination with the bearing puller attachment.

Features and Benefits

Precise hydraulic control for fast, efficient and safe pulling
High quality forged steel components for superior reliability and service
Hydraulic set included: P392 hand pump, RCH202 cylinder, HC7206C hose, GA45GC
700 bar (10,000 psi) maximum operating pressure
300 mm reach; 400 mm 2-jaw and 499 mm 3-jaw spread range

Enerpac BHP251G

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginChina

Adjusting Screw Length675 mm

Power SourceHydraulic

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsPull

Maximum Reach300 mm

Spread Range (2-Jaw)400 mm

Product TypeGrip Puller Set

SeriesBHP

Adjusting Screw Thread1" - 8 UNC

Jaw Thickness20 mm

Model Type24 ton, Grip Puller Set & Hand Pump

Capacity24 ton

Puller Pump Power SourceHand Pump

Jaw Width27 mm

Spread Range (3-Jaw)499 mm

Product LineIndustrial Tools

Weight56 kg (123 lbs)

Set IncludesP392,RCH202,GA45GC,HC7206C,BHP252

Documents & CAD

Series documents 10· shared by this product series

Instruction ManualHydraulic Hose / FittingsPDF·395 KB

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Instruction ManualHose, HydraulicPDF·4.1 MB 4 languages· in one file

Repair Parts SheetCylinder - 20 TonPDF·45 KB·English

Repair Parts SheetPump - HandPDF·119 KB·English

Repair Parts SheetBHP Puller Sets and AttachmentsPDF·1.1 MB

Repair Parts SheetBHP Puller Sets and AttachmentsPDF·2.0 MB 4 languages· in one file

BrochureBHP-Series Grip Puller Sets; EnglishPDF·157 KB

BrochureHydraulic_Mechanical_Pullers_EN-AUPDF·3.9 MB
