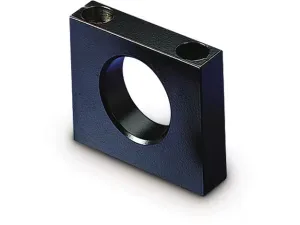

Enerpac AD181 16 Ton RD Cylinder Foot Mount

Enerpac AD181; foot mounting with retainer nut for 16 ton (US) RD series cylinders, mounts onto the cylinder collar.

EnerpacMFR # AD181SKU # CEY-55221B1172E1

Dimension E35 mm (1.38 in)

Country of OriginUnited States

Dimension F101.6 mm (4 in)

Dimension D19.8 mm (0.78 in)

Compatible Cylinder SeriesRD

Dimension C95.2 mm (3.75 in)

Have questions?Chat on WhatsApp

About This Product

AD181 is a foot mounting with retainer nut designed for Enerpac RD series 16 ton (US) cylinders. It fits onto the cylinder collar and is secured with the retainer nut. Mounting screws are not included. Catalog dimensions: A 66.8 mm (2.63 in), B 127 mm (5 in), C 95.2 mm (3.75 in), D 19.8 mm (0.78 in), E 35 mm (1.38 in), F 101.6 mm (4 in), H 52.3 mm (2.06 in). Country of origin is the United States. It is used in industrial tool and workholding applications where an RD cylinder must be foot-mounted to a surface or fixture.

Features and Benefits

Compatible with 16 ton (US) RD series cylinders
Supplied with retainer nut
Mounts directly onto the cylinder collar
Foot dimensions: B 127 mm, F 101.6 mm, H 52.3 mm
Mounting screws not included

Enerpac AD181

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E35 mm (1.38 in)

Country of OriginUnited States

Dimension F101.6 mm (4 in)

Dimension D19.8 mm (0.78 in)

Compatible Cylinder SeriesRD

Dimension C95.2 mm (3.75 in)

Dimension B127 mm (5 in)

Dimension H52.3 mm (2.06 in)

Product TypeFoot Mount

SeriesAD

Capacity Class16 ton

For Use with Cylinder Capacity16 ton

Dimension A66.8 mm (2.63 in)

Product LineIndustrial Tools, Workholding Tools

Documents & CAD

For this product 1

2D DrawingAD181 drawingPDF·32 KB

Series documents 1· shared by this product series

BrochureRD-AD-Series Precision Production Cylinders; EnglishPDF·255 KB

CAD Files 3

3D Model
