How can I get a price quote for Enerpac AD172?

You can request a fast quote for Enerpac AD172 from Yılsa Engineering. Reference part number CEY-7B4B2D998C7E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac AD172 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac AD172 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac AD172?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

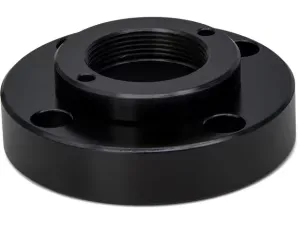

Enerpac AD172 9 Ton RD Cylinder Flange Mount

Enerpac AD172; flange mounting with retainer nut for 9 ton (US) RD series cylinders, mounts onto the cylinder collar.

EnerpacMFR # AD172SKU # CEY-7B4B2D998C7E

Dimension E25 mm (1 in)

Country of OriginUnited States

Dimension D10.4 mm (0.41 in)

Compatible Cylinder SeriesRD

Dimension C98.6 mm (3.88 in)

Dimension B120.6 mm (4.75 in)

Have questions?Chat on WhatsApp

About This Product

AD172 is a flange mounting with retainer nut designed for Enerpac RD series 9 ton (US) cylinders. It fits onto the cylinder collar and is secured with the retainer nut. Mounting screws are not included. Catalog dimensions: A 50 mm (2 in), B 120.6 mm (4.75 in), C 98.6 mm (3.88 in), D 10.4 mm (0.41 in), E 25 mm (1 in). Country of origin is the United States. It is used in industrial tool and workholding applications where an RD cylinder must be flange-mounted to a fixture, machine frame or custom assembly.

Features and Benefits

Compatible with 9 ton (US) RD series cylinders
Supplied with retainer nut
Mounts directly onto the cylinder collar
Flange dimensions: B 120.6 mm, C 98.6 mm, E 25 mm
Mounting screws not included

Enerpac AD172

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E25 mm (1 in)

Country of OriginUnited States

Dimension D10.4 mm (0.41 in)

Compatible Cylinder SeriesRD

Dimension C98.6 mm (3.88 in)

Dimension B120.6 mm (4.75 in)

Product TypeFlange Mount

SeriesAD

Capacity Class9 ton

For Use with Cylinder Capacity9 ton

Dimension A50 mm (2 in)

Product LineIndustrial Tools, Workholding Tools

Documents & CAD

For this product 1

2D DrawingAD172 drawingPDF·43 KB

Series documents 1· shared by this product series

BrochureRD-AD-Series Precision Production Cylinders; EnglishPDF·255 KB

CAD Files 3

3D Model

Alternative Names & Search Terms

AD172AD-172AD 172Enerpac AD172Enerpac AD-172Enerpac AD 172AD172 flange mountAD172 cylinder attachmentEnerpac AD seriesEnerpac RD cylinder accessoryRD cylinder flange mounting9 ton cylinder flange mountflange mount with retainer nutRD9 cylinder flangehydraulic cylinder flange mounting kitworkholding cylinder flange
