Bosch Rexroth R187366371

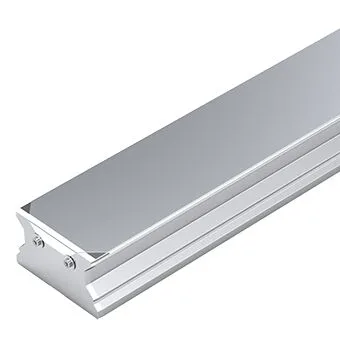

The roller guide rail is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features:<br>Size 65<br>Format BNS: Width = wide, length = normal, height = standard<br>Guide rail made of carbon steel CS, matte-silver, hard chrome plated<br>Fastener MA: Bolting from above<br>Cover AB: Cover strip and protective caps<br>Accuracy class high<br>Number of partial sections: one-piece<br>Rail in standard version
VersionRoller rail systems
Nominal size [mm]65/100
FormatBNS - wide guide rail
Material (profiled rail systems)Hard chrome plated
Accuracy classH - Highly accurate
Guide rail mountingFor bolting from above
About This Product
The roller guide rail is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features:<br>Size 65<br>Format BNS: Width = wide, length = normal, height = standard<br>Guide rail made of carbon steel CS, matte-silver, hard chrome plated<br>Fastener MA: Bolting from above<br>Cover AB: Cover strip and protective caps<br>Accuracy class high<br>Number of partial sections: one-piece<br>Rail in standard version
Bosch Rexroth R187366371
- Genuine, certified Bosch Rexroth product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
VersionRoller rail systems
Nominal size [mm]65/100
FormatBNS - wide guide rail
Material (profiled rail systems)Hard chrome plated
Accuracy classH - Highly accurate
Guide rail mountingFor bolting from above
Guide rail coverWith cover strip
Max. length Lmax [mm]3971.0
Note: LmaxRoller guide rails R1873 .6 .. Resist CR only up to 3971 mm long
Number of holes nB53
Number of sectionsOne-piece
Mass m (kg/m) [kg/m]34.7
Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C
Note: Permissible ambient temperature (min. ... max.)100°C admissible for short time. For operation at lower minus temperatures, please consult us.
Weight [kg]0

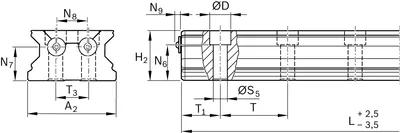

Recommended rail lengthL = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Pitch T guide rail [mm]75
Dimension A2 [mm]100
Dimension D [mm]24
Dimension diameter S520
Dimension H2 with cover strip [mm]58.15
Note: H2 with cover stripWith cover strip 0.3 mm
Dimension N6 [mm]39
Dimension N6 tolerance [mm]±0.5
Dimension N7 [mm]40
Dimension N8 [mm]37
Dimension N9 [mm]4.8
Dimension T [mm]75
Dimension T1 min [mm]35.5
Dimension T1 s [mm]38
Note: Dimensions T1 minWhen undercutting T<sub>1 min</sub>, no front-side thread possible. Secure the cover strip! Observe the instruction for mounting!
Note: Dimensions T1 sPreferred dimension T<sub>1S</sub> with tolerance +1/-1.5
Height of guide rail H2 with cover strip [mm]58.15
