Bosch Rexroth R18225212A

The roller runner block is highly precise and characterized by the following product features: Size 55 Format SNS: Width = slimline, length = normal, height = standard Runner block body made of unalloyed steel CS Preload class C2: Medium preload Accuracy class SP: Super precision Without roller chain Preserved Without initial lubrication Without attachment element, left (front reference edge) Without attachment element, right (front reference edge) Straight lube connection loosely attached. Runner block body in standard version Overall length of the runner block = 170.7 mm Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

Bosch RexrothMFR # R18225212ASKU # YLS18VRKTDLU4K

VersionRoller rail systems

Nominal size [mm]55

FormatSNS - slimline, normal, standard height

ModelHigh-precision roller runner block

Material (profiled rail systems)Carbon steel

Preload classC2 - Medium preload

Have questions?Chat on WhatsApp

About This Product

Bosch Rexroth R18225212A

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

VersionRoller rail systems

Nominal size [mm]55

FormatSNS - slimline, normal, standard height

ModelHigh-precision roller runner block

Material (profiled rail systems)Carbon steel

Preload classC2 - Medium preload

Accuracy classSP - Super precise

SealAS - Double-lip seal with reinforced longitudinal seal

LubricationPreserved

Width of runner block [mm]100.0

Length of runner block [mm]170.65

Height of runner block [mm]58.0

Height runner block with guide rail [mm]70.0

Maximum acceleration rate amax [m/s²]150.0

Note: Max. acceleration amaxRequirement: There must be preload, even during operation under load.

Maximum permissible linear speed vmax [m/s]4.0

Note: SealWith integrated DS seal

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Note: Permissible ambient temperature (min. ... max.)100°C admissible for a short time. For operation at lower minus temperatures, please consult us.

Friction coefficient μ0.0004 ... 0.001

Note: Friction coefficient μWithout friction of seal

Weight [kg]4.14

Dynamic load capacity C50 [N]173000.0

Note: dynamic load capacity C50Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.

Dynamic load capacity C100 [N]140400.0

Note: dynamic load capacity C100Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.

Static load capacity C0 [N]284700.0

Dynamic torsional moment load capacity Mt50 [Nm]5070.0

Note: Dynamic torsional moment load capacity Mt50Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.

Dynamic torsional moment load capacity Mt100 [Nm]4120.0

Note: Dynamic torsional moment load capacity Mt100Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.

Static torsional moment load capacity Mt0 [Nm]8350

Dynamic longitudinal moment load capacity ML50 [Nm]3210.0

Note: Dynamic longitudinal moment load capacity ML50Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.

Dynamic longitudinal moment load capacity ML100 [Nm]2610.0

Note: Dynamic longitudinal moment load capacity ML100Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.

Static longitudinal moment load capacity ML0 [Nm]5290

Note: Friction force FRGuideline value for frictional drags of the complete, sealed and lubricated roller runner block.

Pitch T guide rail [mm]60

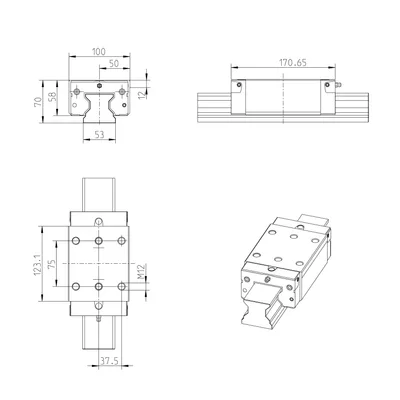

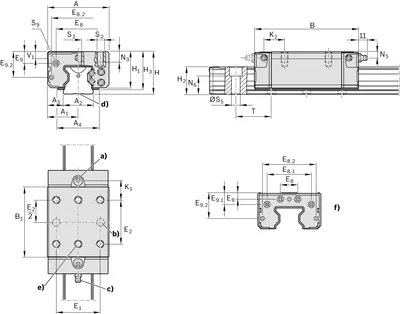

Dimension A [mm]100

Dimension A1 [mm]50

Dimension A2 [mm]53

Dimension A3 [mm]23.5

Dimension B [mm]170.65

Dimension B1 [mm]123.1

Dimension diameter S516

Dimension E1 [mm]75

Dimension E2 [mm]75
