Bosch Rexroth R167520432
The ball guide rail is highly precise and characterized by the following product features:<br>Size 25<br>Format BNS: Width = wide, length = normal, height = standard<br>Guide rail made of carbon steel CS<br>Fastener MA: Bolting from above<br>Cover AK: Plastic caps<br>Accuracy class standard<br>Number of partial sections: 2<br>Rail in standard version
VersionBall rail system
Nominal size [mm]25/70
FormatBNS - wide guide rail
Material (profiled rail systems)Carbon steel
Accuracy classN - Normal
Guide rail mountingFor bolting from above
About This Product
The ball guide rail is highly precise and characterized by the following product features:<br>Size 25<br>Format BNS: Width = wide, length = normal, height = standard<br>Guide rail made of carbon steel CS<br>Fastener MA: Bolting from above<br>Cover AK: Plastic caps<br>Accuracy class standard<br>Number of partial sections: 2<br>Rail in standard version
Bosch Rexroth R167520432
- Genuine, certified Bosch Rexroth product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
VersionBall rail system
Nominal size [mm]25/70
FormatBNS - wide guide rail
Material (profiled rail systems)Carbon steel
Accuracy classN - Normal
Guide rail mountingFor bolting from above
Guide rail coverPlastic caps
Max. length Lmax [mm]3836.0
Minimum length Lmin [mm]100.0
Number of holes nB48
Number of sections2-piece
Mass m (kg/m) [kg/m]11.6
Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C
Note: Permissible ambient temperature (min. ... max.)100 °C admissible for short time. For operation at negative temperatures, please consult us.
Weight [kg]0
Recommended rail lengthL = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Note: SizeNotice: Ball guide rail cannot be combined with ball runner block R1671 8.. ..!
Product informationPlease configure the product to add it to the shopping cart.

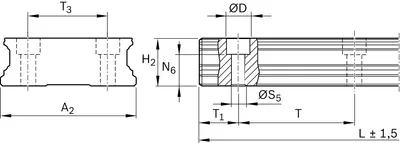

Pitch T guide rail [mm]80
Dimension A2 [mm]69
Dimension D [mm]11
Dimension H2 without cover strip [mm]23.55
Dimension N6 [mm]14.5
Dimension N6 tolerance [mm]±0.5
Dimension S5 [mm]7
Dimension T [mm]80
Dimension T1 max [mm]70
Dimension T1 min [mm]10
Dimension T1 s [mm]38
Dimension T3 [mm]40
Note: Dimensions T1 sPreferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended.
