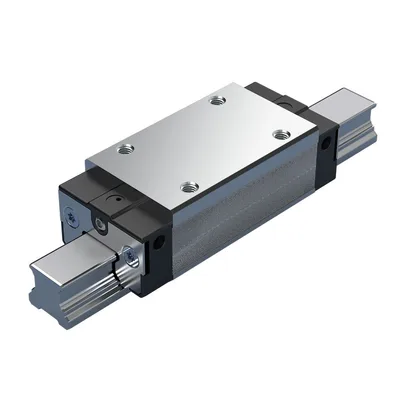

Photo may not represent actual item. Refer to name and product specs for all details.

Bosch Rexroth R16511222Z

The ball runner block is highly precise and characterized by the following product features: Size 15 Format FNS: Width = flange, length = normal, height = standard Runner block body made of unalloyed steel CS Preload class C2: Medium preload Accuracy class P: Precision Without ball chain With initial lubrication and preservation Roller bearing grease Dynalub 510 Without attachment element, left (front reference edge) Without attachment element, right (front reference edge) Straight lube connection loosely attached. Runner block body in standard version Overall length of the runner block = 58.2 mm Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

Bosch RexrothMFR # R16511222ZSKU # YLS4TCHTMI3BLVT

VersionBall rail system

Nominal size [mm]15

FormatFNS - flange, normal, standard height

ModelHigh-precision ball runner block

Material (profiled rail systems)Carbon steel

Preload classC2 - Medium preload

Have questions?Chat on WhatsApp

About This Product

Bosch Rexroth R16511222Z

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

VersionBall rail system

Nominal size [mm]15

FormatFNS - flange, normal, standard height

ModelHigh-precision ball runner block

Material (profiled rail systems)Carbon steel

Preload classC2 - Medium preload

Accuracy classP - Precise

SealDS - Double-lip seal

Ball chainWithout ball chain (standard)

LubricationPre-lubricated, preserved

Self-aligning for compensation of misalignmentsWithout self-alignment

Width of runner block [mm]47.0

Length of runner block [mm]58.2

Height of runner block [mm]19.9

Height runner block with guide rail [mm]24.0

Maximum acceleration rate amax [m/s²]500.0

Note: Max. acceleration amaxIf Fcomb◡> 2.8 • Fpr : amax = 50 m/s2

Maximum permissible linear speed vmax [m/s]5.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Note: Permissible ambient temperature (min. ... max.)100°C admissible for short time. For operation at negative temperatures, please consult us.

Friction coefficient μ0.002 ... 0.003

Note: Friction coefficient μWithout friction of seal

Weight [kg]0.2

Dynamic load capacity C50 [N]12400.0

Note: dynamic load capacity C50Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.

Dynamic load capacity C100 [N]9860.0

Note: dynamic load capacity C100Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.

Static load capacity C0 [N]12700.0

Dynamic torsional moment load capacity Mt50 [Nm]120.0

Note: Dynamic torsional moment load capacity Mt50Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.

Dynamic torsional moment load capacity Mt100 [Nm]95.0

Note: Dynamic torsional moment load capacity Mt100Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.

Static torsional moment load capacity Mt0 [Nm]120

Dynamic longitudinal moment load capacity ML50 [Nm]86.0

Note: Dynamic longitudinal moment load capacity ML50Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.

Dynamic longitudinal moment load capacity ML100 [Nm]68.0

Note: Dynamic longitudinal moment load capacity ML100Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.

Static longitudinal moment load capacity ML0 [Nm]87

Pitch T guide rail [mm]60

Dimension A [mm]47

Dimension A1 [mm]23.5

Dimension A2 [mm]15

Dimension A3 [mm]16

Dimension B [mm]58.2

Dimension B tolerance [mm]+0.5

Dimension B1 [mm]39.2

Dimension E1 [mm]38

Dimension E2 [mm]30

Dimension E3 [mm]26
