How can I get a price quote for Bosch Rexroth R162139420?

You can request a fast quote for Bosch Rexroth R162139420 from Yılsa Engineering. Reference part number YLSJJ4LWXIYSUH. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Bosch Rexroth R162139420 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Bosch Rexroth R162139420 genuine and new?

Yes. This Bosch Rexroth product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Bosch Rexroth R162139420?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

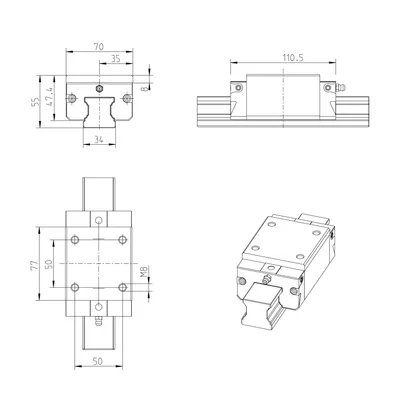

Bosch Rexroth R162139420

The ball runner block is highly precise and characterized by the following product features: Size 35 Format SNH: Width = slimline, length = normal, height = high Runner block body made of unalloyed steel CS Preload class C0: Preload-free Accuracy class N: Normal Without ball chain With initial lubrication and preservation Roller bearing grease Dynalub 510 Without attachment element, left (front reference edge) Without attachment element, right (front reference edge) Straight lube connection loosely attached. Runner block body in standard version Overall length of the runner block = 110.5 mm Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

Bosch RexrothMFR # R162139420SKU # YLSJJ4LWXIYSUH

VersionBall rail system

Nominal size [mm]35

FormatSNH - slimline, normal, high

ModelHigh-precision ball runner block

Material (profiled rail systems)Carbon steel

Preload classC0 - Without preload (clearance)

Have questions?Chat on WhatsApp

About This Product

Bosch Rexroth R162139420

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

VersionBall rail system

Nominal size [mm]35

FormatSNH - slimline, normal, high

ModelHigh-precision ball runner block

Material (profiled rail systems)Carbon steel

Preload classC0 - Without preload (clearance)

Accuracy classN - Normal

SealSS - Standard seal

Ball chainWithout ball chain (standard)

LubricationPre-lubricated, preserved

Self-aligning for compensation of misalignmentsWithout self-alignment

Width of runner block [mm]70.0

Length of runner block [mm]110.5

Height of runner block [mm]47.4

Height runner block with guide rail [mm]55.0

Maximum acceleration rate amax [m/s²]500.0

Note: Max. acceleration amaxIf Fcomb◡> 2.8 • Fpr : amax = 50 m/s2

Maximum permissible linear speed vmax [m/s]5.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Note: Permissible ambient temperature (min. ... max.)100°C admissible for short time. For operation at negative temperatures, please consult us.

Friction coefficient μ0.002 ... 0.003

Note: Friction coefficient μWithout friction of seal

Weight [kg]1.55

Dynamic load capacity C50 [N]65300.0

Note: dynamic load capacity C50Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.

Dynamic load capacity C100 [N]51800.0

Note: dynamic load capacity C100Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.

Static load capacity C0 [N]80900.0

Dynamic torsional moment load capacity Mt50 [Nm]1400.0

Note: Dynamic torsional moment load capacity Mt50Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.

Dynamic torsional moment load capacity Mt100 [Nm]1110.0

Note: Dynamic torsional moment load capacity Mt100Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.

Static torsional moment load capacity Mt0 [Nm]1740

Dynamic longitudinal moment load capacity ML50 [Nm]910.0

Note: Dynamic longitudinal moment load capacity ML50Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.

Dynamic longitudinal moment load capacity ML100 [Nm]720.0

Note: Dynamic longitudinal moment load capacity ML100Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.

Static longitudinal moment load capacity ML0 [Nm]1130

Pitch T guide rail [mm]80

Dimension A [mm]70

Dimension A1 [mm]35

Dimension A2 [mm]34

Dimension A3 [mm]18

Dimension B [mm]110.5

Dimension B tolerance [mm]+0.5

Dimension B1 [mm]77

Dimension E1 [mm]50

Dimension E2 [mm]50

Dimension E8 [mm]58

Dimension E9 [mm]24.35

Dimension H [mm]55.0

Dimension H1 [mm]47.4

Dimension H2 with cover strip [mm]32.15

Dimension H2 without cover strip [mm]31.85

Dimension K1 [mm]20.5

Dimension K2 [mm]22

Dimension K3 [mm]13.9

Dimension K4 [mm]13.9

Dimension N3 [mm]13

Dimension N6 [mm]20.5

Dimension N6 tolerance [mm]±0.5

Dimension S2M8

Dimension S5 [mm]9

Dimension S9M3x5 mm

Dimension S9 thread diameterM3

Dimension S9 lead [mm]5

Dimension T1 min [mm]16

Dimension V1 [mm]8
