Bosch Rexroth R106626000

Linear set (steel) Adjustable With standard LB (metal) Shaft diameter d = 60 With two seals Version: Standard

Bosch RexrothMFR # R106626000SKU # YLSKIZNLMZJAVRA

Shaft diameter d [mm]60.0

Format of linear bushingsE - Adjustable

SeriesStandard (metal)

TypeLinear set

Dynamic load capacity C [N]11500.0

Maximum acceleration rate amax [m/s²]50.0

Have questions?Chat on WhatsApp

About This Product

Linear set (steel) Adjustable With standard LB (metal) Shaft diameter d = 60 With two seals Version: Standard

Bosch Rexroth R106626000

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]60.0

Format of linear bushingsE - Adjustable

SeriesStandard (metal)

TypeLinear set

Dynamic load capacity C [N]11500.0

Note: Dynamic load capacity CThe load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

Maximum acceleration rate amax [m/s²]50.0

Maximum permissible linear speed vmax [m/s]2.0

Radial clearanceClamped to h5 shaft (lower limit) and set to zero-clearance before delivery

Outer diameter D [mm]90.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]6.85

Static load capacity C0 [N]9160.0

Note: Static load capacity C0The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

Note: Friction force FRFrictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]36

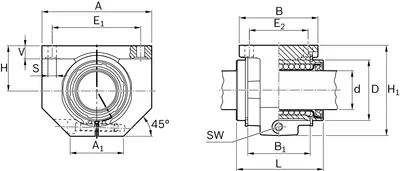

Dimension A [mm]160

Dimension A1 [mm]70

Dimension B [mm]92

Dimension B1 [mm]95

Dimension D [mm]90

Dimension E1 [mm]132

Dimension E2 [mm]65

Dimension H [mm]60.0

Dimension H1 [mm]125

Dimension L [mm]125

Dimension S [mm]11
