Bosch Rexroth R103685020

Linear set (aluminum) Adjustable With super LB B Shaft diameter d = 50 With two seals Version: Standard

Bosch RexrothMFR # R103685020SKU # YLSEZ3WQ1SJPJTZ

Shaft diameter d [mm]50.0

Format of linear bushingsE - Adjustable

SeriesSuper B (no self-alignment feature)

TypeLinear set

Dynamic load capacity C [N]14730.0

Maximum acceleration rate amax [m/s²]150.0

Have questions?Chat on WhatsApp

About This Product

Linear set (aluminum) Adjustable With super LB B Shaft diameter d = 50 With two seals Version: Standard

Bosch Rexroth R103685020

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]50.0

Format of linear bushingsE - Adjustable

SeriesSuper B (no self-alignment feature)

TypeLinear set

Dynamic load capacity C [N]14730.0

Note: Dynamic load capacity CThe load capacities apply for the main direction of loading. If the load direction is not the main direction of loading, the load capacities must be multiplied by the following factors: Ø d 10 to 16: ↩f = 0.82, f0 = 0.86 ↩Ø d 20 to 50: f = 0.82, f0 = 0.78

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]3.0

Note: Maximum permissible speed vmaxSpeeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure.

Radial clearanceClamped to h5 shaft (lower limit) and set to zero-clearance before delivery

Outer diameter D [mm]75.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]3

Static load capacity C0 [N]8280.0

Note: Static load capacity C0The load capacities apply for the main direction of loading. If the load direction is not the main direction of loading, the load capacities must be multiplied by the following factors: Ø d 10 to 16: ↩f = 0.82, f0 = 0.86 ↩Ø d 20 to 50: f = 0.82, f0 = 0.78

Note: Friction force FRFrictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]10

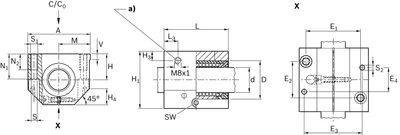

Dimension A [mm]132

Dimension D [mm]75

Dimension E1 [mm]108

Dimension E2 [mm]50

Dimension E3 [mm]108

Dimension E4 [mm]42

Dimension H [mm]50.0

Dimension H1 [mm]105

Dimension H3 [mm]12.5

Dimension H4 [mm]37

Dimension L [mm]113
