Bosch Rexroth R102821244

Linear set (aluminum) With compact LB, adjustable Shaft diameter d = 12 With two seals Version: Standard Greased

Bosch RexrothMFR # R102821244SKU # YLSWTSVV1CKSVM

Shaft diameter d [mm]12.0

VersionNormal

Format of linear bushingsE - Adjustable

SeriesCompact

TypeLinear set

Dynamic load capacity C [N]810.0

Have questions?Chat on WhatsApp

About This Product

Linear set (aluminum) With compact LB, adjustable Shaft diameter d = 12 With two seals Version: Standard Greased

Bosch Rexroth R102821244

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]12.0

VersionNormal

Format of linear bushingsE - Adjustable

SeriesCompact

TypeLinear set

Dynamic load capacity C [N]810.0

Note: Dynamic load capacity CThe load capacities apply for the main direction of loading. If the load direction is not the main direction of loading, the load capacities must be multiplied by the following factors: ↩Ø d 12 and 16: f = 0.90, f0 = 0.86, ↩Ø d 20 to 50: f = 0.79, f0 = 0.68

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]5.0

Radial clearanceClamped to h5 shaft (lower limit) and set to zero-clearance before delivery

Outer diameter D [mm]19.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]0.09

Static load capacity C0 [N]490.0

Note: Static load capacity C0The load capacities apply for the main direction of loading. If the load direction is not the main direction of loading, the load capacities must be multiplied by the following factors: ↩Ø d 12 and 16: f = 0.90, f0 = 0.86, ↩Ø d 20 to 50: f = 0.79, f0 = 0.68

Note: Friction force FRFrictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.

Breakaway force [N]1.5

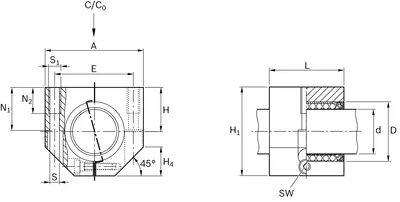

Dimension A [mm]40

Dimension D [mm]19

Dimension E [mm]29

Dimension H [mm]17.0

Dimension H1 [mm]33

Dimension H4 [mm]11

Dimension L [mm]28

Dimension N1 [mm]16

Dimension N2 [mm]11

Dimension S [mm]4.3

Dimension SW [mm]2.5
