Bosch Rexroth R073124040

Super linear bushing Super SH Open Shaft diameter d = 40 With two seals

Bosch RexrothMFR # R073124040SKU # YLSNHNOL5BE77J5

Shaft diameter d [mm]40.0

VersionNormal

Format of linear bushingsO - Open

SeriesSuper SH

TypeLinear bushing

Seal2 integrated wiper seals

Have questions?Chat on WhatsApp

About This Product

Super linear bushing Super SH Open Shaft diameter d = 40 With two seals

Bosch Rexroth R073124040

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]40.0

VersionNormal

Format of linear bushingsO - Open

SeriesSuper SH

TypeLinear bushing

Seal2 integrated wiper seals

LubricationNot lubricated

Dynamic load capacity C [N]13500.0

Note: Dynamic load capacity CThe load capacities apply for the main direction of loading.

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]5.0

Length of linear bushing [mm]80.0

Outer diameter D [mm]62.0

Permissible ambient temperature (min. ... max.)-20 °C ... +80 °C

Friction coefficient μ0.001 ... 0.004

Note: Friction coefficient μFriction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.

Weight [kg]0.5

Static load capacity C0 [N]10400.0

Note: Static load capacity C0The load capacities apply for the main direction of loading.

Note: Breakaway forceOne wiper seal: Multiply value with factor 0.5

Note: Friction force FROne wiper seal: Multiply value with factor 0.5

Breakaway force [N]12

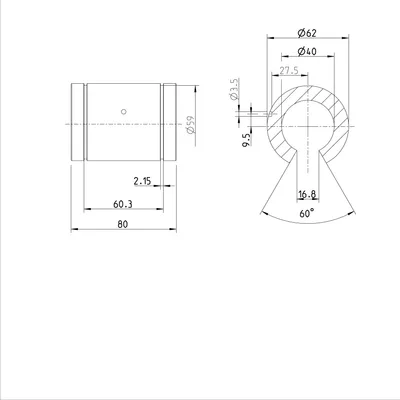

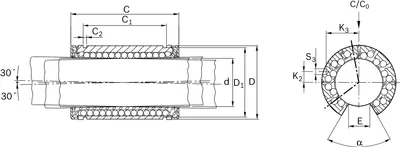

Dimension C h13 [mm]80

Dimension C1 H13 [mm]60.3

Dimension C2 [mm]2.15

Dimension D [mm]62

Dimension D1 [mm]59

Dimension E [mm]16.8
