How can I get a price quote for ABB 1SAM350010R1015?

You can request a fast quote for ABB 1SAM350010R1015 from Yılsa Engineering. Reference part number YLSECHMZ9A5TDX. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 1SAM350010R1015 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 1SAM350010R1015 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 1SAM350010R1015?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

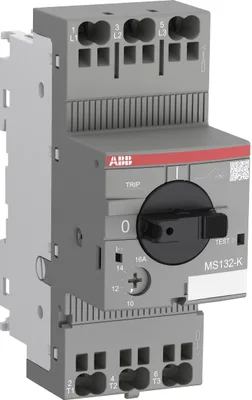

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 1SAM350010R1015

The MS132-32K manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 32.0 A with Push-in spring terminals. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The MS132-K manual motor starter offers a rated service short-circuit breaking capacity Ics = 30 kA at 400 VAC and trip class 10. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The MS132-K manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips and terminal spacers are available as accessory.

ABBMFR # 1SAM350010R1015SKU # YLSECHMZ9A5TDX

Extended Product TypeMS132-32K

Setting Range25 ... 32 A

Rated Operational Power AC-3 (Pe)(400 V) Three Phase 15 kW

Rated Operational Power AC-3e (Pe)(400 V) Three Phase 15 kW

Rated Operational Current (Ie)32 A

Rated Operational Current AC-3 (Ie)32 A

Have questions?Chat on WhatsApp

About This Product

ABB 1SAM350010R1015

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeMS132-32K

Rated Service Short-Circuit Breaking Capacity (Ics)(230 V AC) 30 kA, (250 V DC) 3 Poles in Series 10 kA, (400 V AC) 30 kA, (440 V AC) 30 kA, (500 V AC) 10 kA, (690 V AC) 3 kA

Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V AC) 50 kA, (400 V AC) 50 kA, (440 V AC) 30 kA, (500 V AC) 10 kA, (690 V AC) 3 kA

Rated Instantaneous Short-Circuit Current Setting (Ii)480 A

Setting Range25 ... 32 A

Rated Operational Power AC-3 (Pe)(400 V) Three Phase 15 kW

Rated Operational Power AC-3e (Pe)(400 V) Three Phase 15 kW

Rated Operational VoltageMain Circuit 690 V AC, Main Circuit 250 V DC

Rated Operational Current (Ie)32 A

Rated Operational Current AC-3 (Ie)32 A

Rated Operational Current AC-3e (Ie)32 A

Rated Operational Current DC-5 (Ie)32 A

Rated Frequency (f)Main Circuit 50 Hz, Main Circuit 60 Hz

Operating Frequency (fsw)0 ... 400 Hz

Rated Impulse Withstand Voltage (Uimp)Main Circuit 6 kV

Rated Insulation Voltage (Ui)690 V

Power Lossat Rated Operating Conditions per Pole 1.9 ... 3.1 W

Number of Poles3P

Conventional Free-air Thermal Current (Ith)Main Circuit 32 A

Degree of ProtectionHousing IP20, Main Circuit Terminals IP20

Pollution Degree3

Electrical Durability50000 cycle

Mechanical DurabilityNr. Operations 100000 cycle

Terminal TypePush-in Spring Terminals

Connecting Capacity Main CircuitFlexible with Ferrule 1/2x 0.5 ... 4 mm², Flexible with Insulated Ferrule 1x 0.5 ... 4 mm², Flexible with Insulated Ferrule 2x 0.5 ... 2.5 mm², Flexible 1/2x 0.75 ... 4 mm², Solid 1/2x 1 ... 2.5 mm², Stranded 1/2x 1 ... 6 mm²

Wire Stripping LengthMain Circuit 12 mm

Recommended Screw DriverPozidriv 2

Mounting Position1 ... 6

Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Minimum Mounting DistanceElectrical Conductive Board, Horizontal - Up to 400 V 0 mm, Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm, Electrical Conductive Board, Vertical 75 mm, Other Device Same Type, Horizontal 0 mm, Other Device Same Type, Vertical 150 mm

Actuator TypeRotary Handle

Contact Position IndicationON / OFF / TRIP

StandardsIEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L

Short-Circuit Current Rating (SCCR)Manual Self-Protected Combination Controllers (Type E), (480Y / 277 V AC) 30 kA, Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 30 kA, Any UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 18 kA, Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 30 kA, Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 18 kA, Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 30 kA, Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 18 kA

Maximum Operating Voltage UL/CSAMain Circuit 600 V AC

Horsepower Rating UL/CSA(200 V AC) Three Phase 7.5 Hp, (208 V AC) Three Phase 10 Hp, (220 ... 240 V AC) Three Phase 10 Hp, (440 ... 480 V AC) Three Phase 20 Hp, (550 ... 600 V AC) Three Phase 25 Hp

Full Load Amps Motor Use(200 V AC) Three Phase 25.3 A, (208 V AC) Three Phase 30.8 A, (220 ... 240 V AC) Three Phase 28 A, (440 ... 480 V AC) Three Phase 27 A, (550 ... 600 V AC) Three Phase 27 A

Locked Rotor Amps(200 V AC) Three Phase 146 A, (208 V AC) Three Phase 179 A, (220 ... 240 V AC) Three Phase 162 A, (440 ... 480 V AC) Three Phase 145 A, (550 ... 600 V AC) Three Phase 146 A

General Use Rating UL/CSA(600 V AC) 32 A

Connecting Capacity Main Circuit UL/CSAStranded 1/2x 18-10 AWG, Stranded 1x 8 AWG

Ambient Air TemperatureAround the Enclosure 0 ... +40 °C, Operation -25 ... +70 °C, Operation Compensated -25 ... +60 °C, Storage -50 ... +80 °C

Ambient Air Temperature CompensationYes

Maximum Operating Altitude Permissible2000 m

Resistance to Shock acc. to IEC 60068-2-2711 ms Pulse 25g

Resistance to Vibrations5g 3 ... 150 Hz

A2L Certificate – IEC1SAA963000-4601
