Bosch Rexroth R066802000

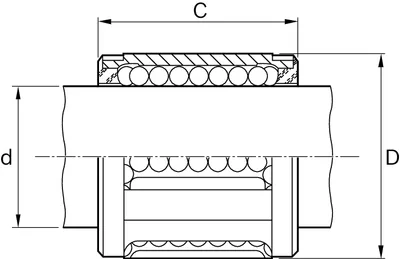

Segmental linear bushing Closed Shaft diameter d = 20 Without seal Version: Standard

Bosch RexrothMFR # R066802000SKU # YLSS0PQKKATBRD

Shaft diameter d [mm]20.0

VersionNormal

Format of linear bushings– Closed

SeriesSegment

TypeLinear bushing

SealWithout wiper seals

Have questions?Chat on WhatsApp

About This Product

Segmental linear bushing Closed Shaft diameter d = 20 Without seal Version: Standard

Bosch Rexroth R066802000

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]20.0

VersionNormal

Format of linear bushings– Closed

SeriesSegment

TypeLinear bushing

SealWithout wiper seals

LubricationNot lubricated

Maximum dynamic load capacity Cmax [N]1080.0

Maximum acceleration rate amax [m/s²]150.0

Maximum permissible linear speed vmax [m/s]3.0

Length of linear bushing [mm]30.0

Outer diameter D [mm]30.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Friction coefficient μ0.001 ... 0.004

Note: Friction coefficient μFriction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.

Weight [kg]0.04

Note: Maximum dynamic load capacity CmaxThe dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Note: Minimum dynamic load capacity CminThe dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.

Note: Friction force FRFrictional drags generated by linear bushings with seals on both ends when not under radial load. This depends on speed and lubrication.

Breakaway force [N]5

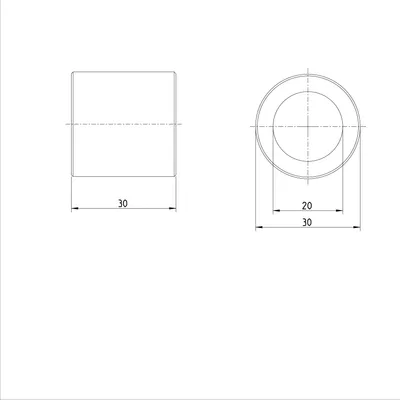

Dimension C js14 [mm]30

Dimension D [mm]30
