Bosch Rexroth R066505000

Rotary motion linear bushing Needle bearing Shaft diameter d = 50 Without seal

Bosch RexrothMFR # R066505000SKU # YLSE5CT1KUOHHOR

Shaft diameter d [mm]50.0

VersionNormal

Format of linear bushingsN - With needle bearing

TypeLinear bushing

SealWithout wiper seals

LubricationNot lubricated

Have questions?Chat on WhatsApp

About This Product

Rotary motion linear bushing Needle bearing Shaft diameter d = 50 Without seal

Bosch Rexroth R066505000

Genuine, certified Bosch Rexroth product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Shaft diameter d [mm]50.0

VersionNormal

Format of linear bushingsN - With needle bearing

SeriesCombined linear and rotary motion (rotation)

TypeLinear bushing

SealWithout wiper seals

LubricationNot lubricated

Dynamic load capacity C [N]8260.0

Note: Dynamic load capacity CThe load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

Maximum acceleration rate amax [m/s²]50.0

Maximum permissible linear speed vmax [m/s]2.0

Length of linear bushing [mm]100.0

Outer diameter D [mm]92.0

Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C

Weight [kg]2.31

Note: Diameter dContrary to the illustration, these sizes have two needle bearings.

Static load capacity C0 [N]6470.0

Note: Static load capacity C0The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.

Note: Retaining ringSeeger-Orbis GmbH

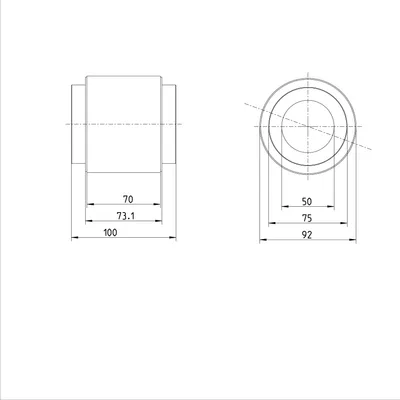

Dimension A [mm]73.1

Dimension B [mm]100

Dimension b [mm]70

Dimension C3 H12 [mm]78.3

Dimension C4 H13 [mm]2.7

Dimension D [mm]92

Dimension D1 [mm]75

Dimension D2 [mm]80.6

Dimension D3 [mm]90
