Bosch Rexroth 3842530630
VE 2/L Stop Gate
Operating temperature [T] max+5 ... +60 °C
Workpiece pallet total weight [mG] [kg]200
Pneumatic straight connection [Ø] [mm]4
Scope of deliveryPneumatic elements
Delivery informationFully assembled
NoticeHigh-temperature stop gate on request
About This Product
Bosch Rexroth 3842530630 (VE 2/L Stop Gate) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Bosch Rexroth 3842530630 — price, stock availability and technical specifications.
Bosch Rexroth 3842530630
- Genuine, certified Bosch Rexroth product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
required compressed air connection [pmax] [bar]6
required compressed air connection [pmin] [bar]4
Operating temperature [T] max+5 ... +60 °C
Workpiece pallet total weight [mG] [kg]200
Pneumatic straight connection [Ø] [mm]4
A-rated emission sound pressure level [LPA]< 60 dB(A)
Scope of deliveryIncl. all fastening material to mount on ST 2/... conveyor section
Scope of deliveryPneumatic elements
Delivery informationFully assembled
NoticeHigh-temperature stop gate on request
Material informationHousing: PA 6
Material informationSafety catch: Brass
Material informationStop cam: PA 66
Pneumatic circuit diagram1 Not included in the scope of delivery

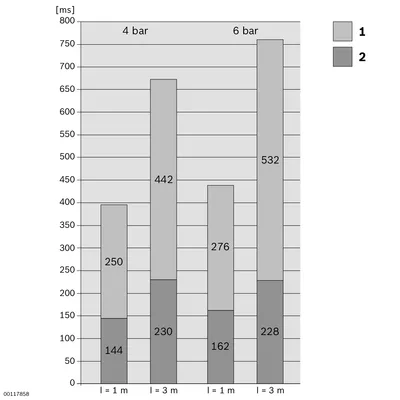

Opening/shutting times1 Close
Opening/shutting times2 Open at 4 bar
Opening/shutting timesl = Hose length
Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min200 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min140 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min100 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 15 m/min70 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min50 kg
Recommended accessoriesPosition sensor
Recommended accessoriesSwitch bracket SH 2/...
Recommended accessoriesVE 2/RS Return Stop
Weight [kg]0.35
