How can I get a price quote for Baldor XL141522T?

You can request a fast quote for Baldor XL141522T from Yılsa Engineering. Reference part number YLS0GJ9JMQF9WVU. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor XL141522T in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor XL141522T genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor XL141522T?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor XL141522T

XL141522T

BaldorMFR # XL141522TSKU # YLS0GJ9JMQF9WVU

EnclosureXPFC

Frame143T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor XL141522T (XL141522T) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor XL141522T — price, stock availability and technical specifications.

Baldor XL141522T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureXPFC

Frame143T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 208.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupCLI GP D; CLII GP F,G

Hazardous area divisionDivision I

Agency approvalsUL · CSA

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage16.000 A @ 115.0 V · 8.000 A @ 230.0 V · 8.500 A @ 208.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load70.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)8.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeJ

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead terminationFlying Leads

Motor type3530L

Mounting arrangementF1

Number of poles2

Overall length16.09 IN

Power factor82

Product familyGeneral Purpose

Pulley face codeStandard

Rodent screenNone

Service factor1.15

Shaft diameter0.875 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

Hazardous area temperature codeT3C

UPC781568973240

Product TypeExplosion Proof (Hazardous Location) Motors

Nameplate

Specification number35-0000-1147

Catalog numberXL141522T

Horsepower (HP)1.5

Temperature codeT3C

Voltage (V)115/208-230

Current (A)16/8.5-8

Speed (rpm)3450

Frequency (Hz)60

Phase1

Insulation classF

Service factor1.15

NEMA design letterL

Code letter (locked rotor kVA)J

Rating40C AMB-CONT

Frame size143T

NEMA nominal efficiency (%)70

Power factor82

Nameplate numberNP1426XPSL

Performance

General characteristics· 115 V, 60 Hz, 1.5 hp

Line-to-line resistance at 25 °C (ohms)0.269 Ω / 1.13 Ohms B Ph

Temperature rise at rated load (°C)61° C

Temperature rise at service factor load (°C)71° C

Breakdown torque5.73 lb-ft

Pull-up torque3.83 lb-ft

Locked-rotor torque5.02 lb-ft

Starting current (A)71.1 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	22	51	69	79	84	87	88	86
Efficiency %	0	60.3	73	77.4	78.8	78.6	77.2	78.7
Speed rpm	3593	3570	3546	3519	3490	3456	3417	3470
Line amps A	7	7.95	9.69	12	14.7	17.9	21.5	16.6
Power W	176	465	767	1084	1422	1782	2173	1638
Torque lb-ft	0	0.553	1.11	1.68	2.26	2.85	3.46	2.61

Documents & CAD

For this product 4

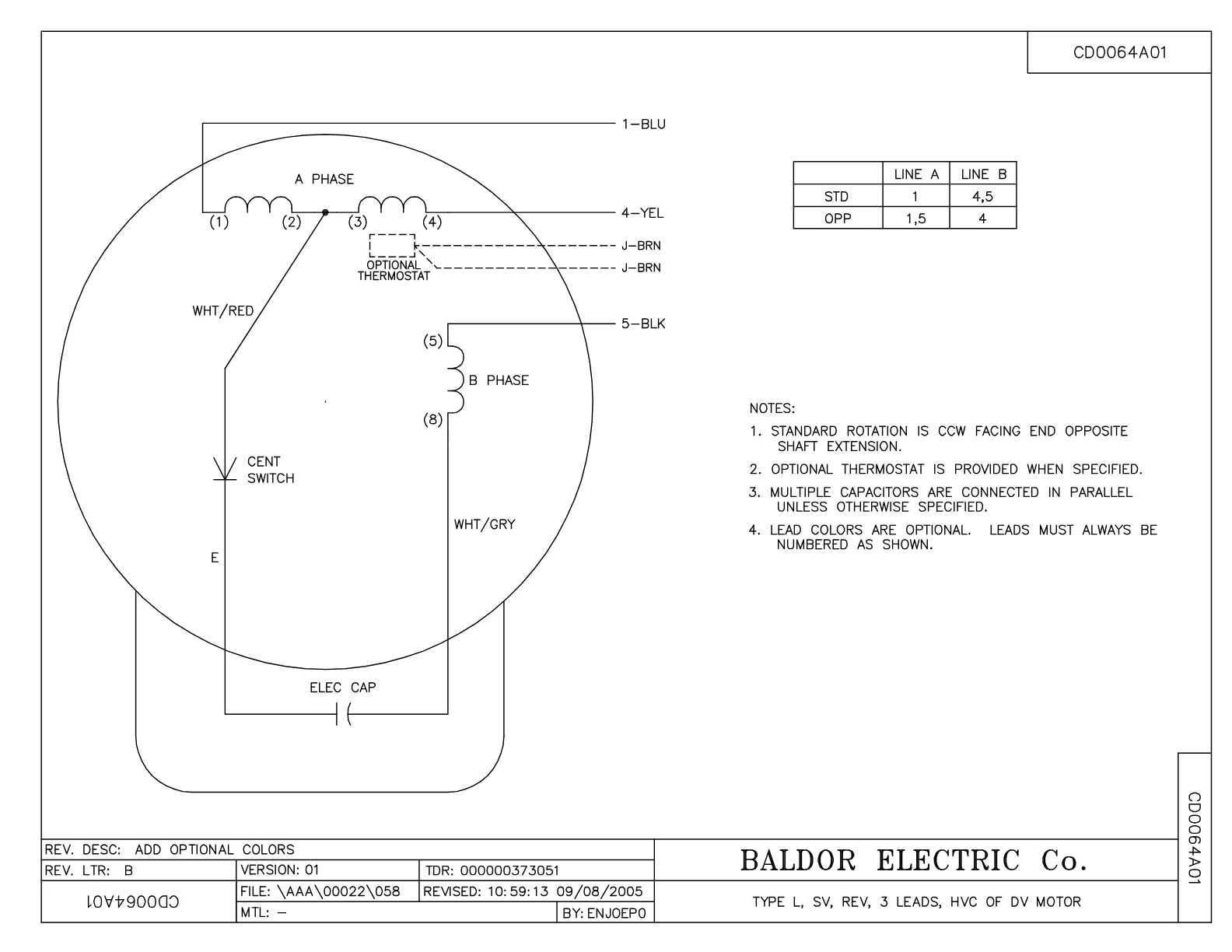

Wiring DiagramWiring DiagramPDF·33 KB·English

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·638 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·122 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 8

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor XL141522T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
35FH4005A01SP	IEC FH NO GREASER W/PRIMED	1 pcs	134 motors
34FN3002A01SP	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	410 motors
35EP3700A01SP	FR ENDPLATE, XPFC	1 pcs	90 motors
35CB3001A02SP	EXPL PROOF CONDUIT BOX, 3/4"PIPE TAP LEA	1 pcs	100 motors
35CB3500A01SP	CONDUIT BOX LID, MACH	1 pcs	203 motors
