Baldor VJPFPM2514T

VJPFPM2514T

BaldorMFR # VJPFPM2514TSKU # YLSDKCHB4QSYOW4

EnclosureODP

Frame254JP

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 50 HZ · 20.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor VJPFPM2514T (VJPFPM2514T) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor VJPFPM2514T — price, stock availability and technical specifications.

Baldor VJPFPM2514T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame254JP

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 50 HZ · 20.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 380.0 V @ 50 HZ · 230.0 V @ 60 HZ · 190.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCSA EEV · CULUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage46.000 A @ 230.0 V · 42.000 A @ 190.0 V · 23.000 A @ 460.0 V · 21.000 A @ 380.0 V

Design codeB

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load90.2 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)21.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeG

Lifting lugsVertical Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size12 @ 12 AWG

Motor type3742M

Mounting arrangementF1

Number of poles2

Overall length27.66 IN

Power factor90

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorTapped & Key

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter1.250 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)2860 rpm · 3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568812983

Product TypeDrive Options & Accessories

Nameplate

Catalog numberVJPFPM2514T

Ingress protection (IP)23

Specification number37N805R893H1

Frame size254JP

Frequency (Hz)60

Horsepower (HP)20

Speed (rpm)3450

Frequency (Hz)50

Horsepower (HP)15

Speed (rpm)2860

Voltage (V)230/460

Code letter (locked rotor kVA)G

Voltage (V)190/380

Code letter (locked rotor kVA)G

Current (A)46/23

NEMA design letterB

Current (A)42/21

NEMA design letterB

Efficiency (%)90.2

Service factor1.15

Power factor90

Efficiency (%)89.5

Service factor1.15

Power factor90

Rating40C AMB-CONT

Drive end bearing6309

GreasePOLYREX EM

Opposite drive end bearing6206

Motor weight145

Insulation classF

Phase3

EnclosureOPSB

CC number010A

Heater voltage (V)N/A

Heater current (A)N/A

Heater power (W)N/A

Nameplate numberNP3454L

Performance

General characteristics· 460 V, 60 Hz, 20 hp

Line-to-line resistance at 25 °C (ohms)0.53993 Ω

Temperature rise at rated load (°C)67° C

Temperature rise at service factor load (°C)89° C

Start configurationDOL

Breakdown torque89.4 lb-ft

Pull-up torque45.9 lb-ft

Locked-rotor torque51.7 lb-ft

Starting current (A)137 A

Line-to-line resistance at 25 °C (ohms)0.53993 Ω

Temperature rise at rated load (°C)60° C

Temperature rise at service factor load (°C)79° C

Start configurationDOL

Breakdown torque86.8 lb-ft

Pull-up torque43.4 lb-ft

Locked-rotor torque53.1 lb-ft

Starting current (A)138 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	65	83	88	90	91	90	91
Efficiency %	0	91.9	93	92	90.4	88.2	85.7	89.1
Speed rpm	3598.8	3565	3528.9	3490.7	3447.9	3395.3	3337.8	3416
Line amps A	5.92	8.05	12.3	17.3	22.9	29.3	36.4	26.7
Power W	259	4132	8087	12168	16444	21134	26105	19258
Torque lb-ft	0	7.49	15	22.6	30.3	38.6	47.2	35.3

Documents & CAD

For this product 3

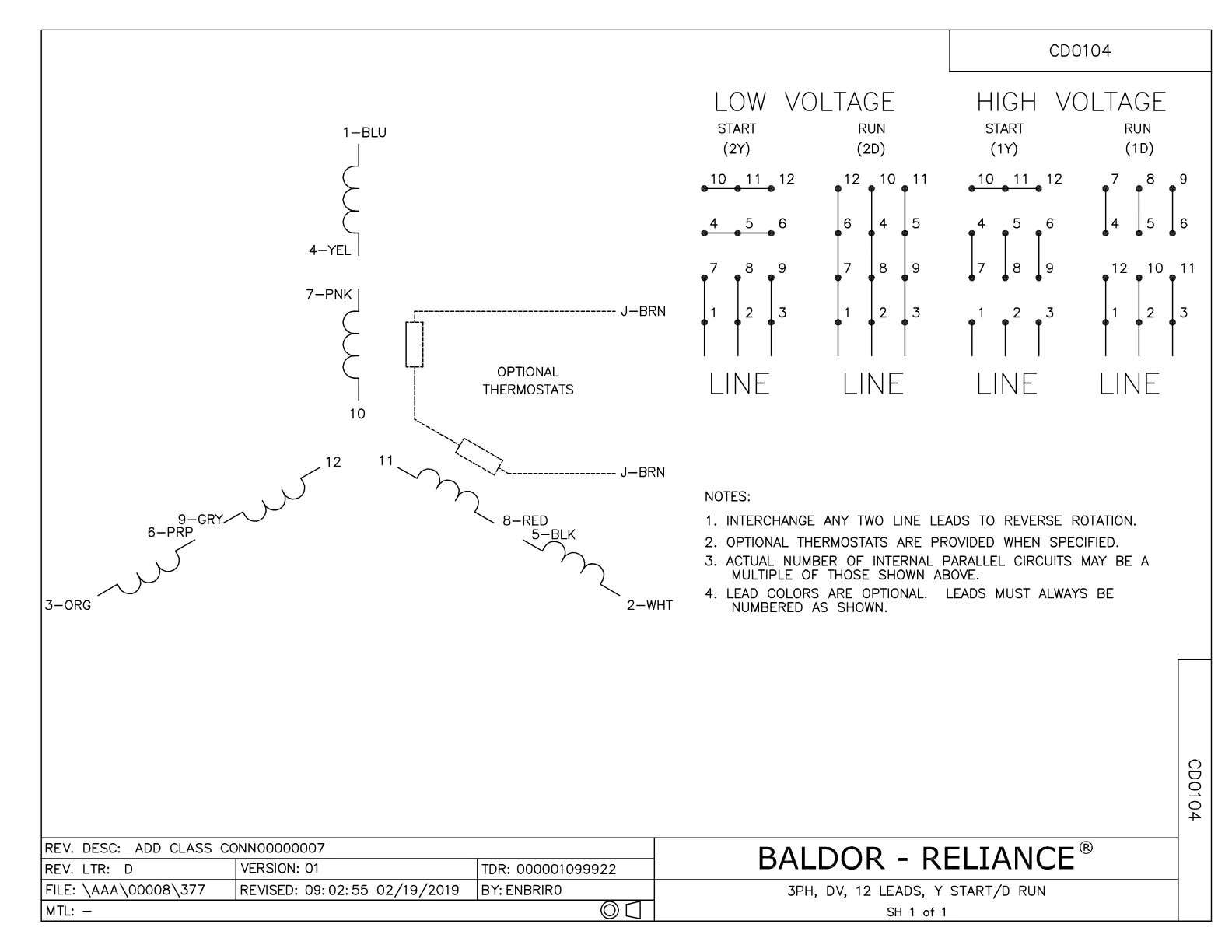

Wiring DiagramWiring DiagramPDF·45 KB·English

DatasheetDatasheetPDF·709 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·137 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor VJPFPM2514T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
09CB3002SP	CB W/1.38 LEAD HOLE FOR 37, 39, 307 & 30	1 pcs	88 motors
09CB3501SP	CONDUIT BOX LID FOR 09CB3001 & 09CB3002	1 pcs	392 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
