Baldor VJPFPM2546T

VJPFPM2546T

BaldorMFR # VJPFPM2546TSKU # YLSNZ6TTNDLIZ5G

EnclosureODP

Frame326JP

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency50.000 HP @ 50 HZ · 60.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor VJPFPM2546T (VJPFPM2546T) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor VJPFPM2546T — price, stock availability and technical specifications.

Baldor VJPFPM2546T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame326JP

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency50.000 HP @ 50 HZ · 60.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 190.0 V @ 50 HZ · 460.0 V @ 60 HZ · 380.0 V @ 50 HZ

Agency approvalsCSA EEV · CULUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage69.000 A @ 380.0 V · 68.000 A @ 460.0 V · 138.000 A @ 190.0 V · 136.000 A @ 230.0 V

Design codeB

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load93.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)68.0 a

Front face codeDrip Cover Mounting

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeG

Lifting lugsVertical Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size12 @ 8 AWG

Motor type4062M

Mounting arrangementF1

Number of poles2

Overall length32.21 IN

Power factor89

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorTapped & Key

Rodent screenIncluded

Service factor1.15

Shaft diameter1.750 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)3520 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568820704

Product TypeDrive Options & Accessories

Documents & CAD

For this product 2

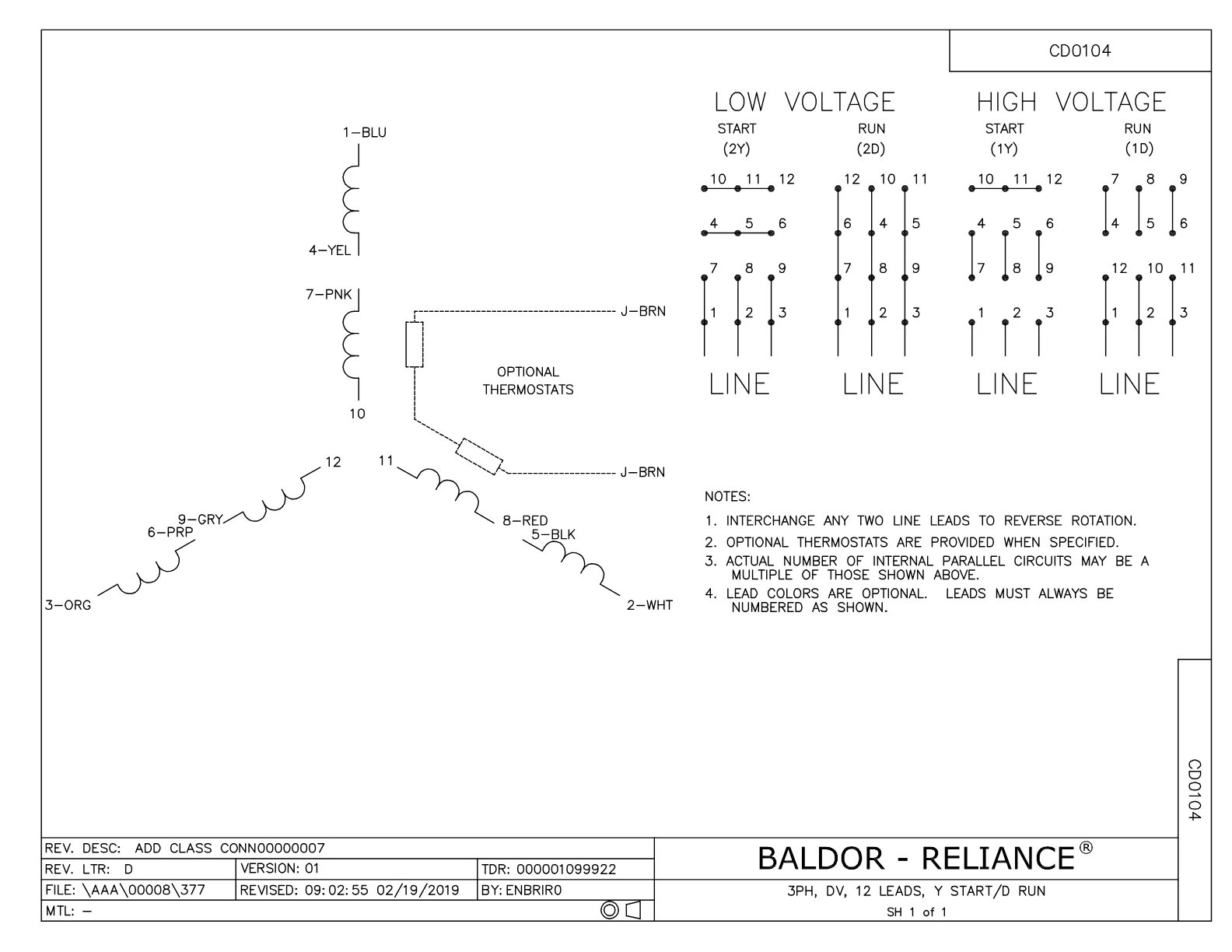

Wiring DiagramWiring DiagramPDF·45 KB·English

DatasheetDatasheetPDF·534 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·129 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor VJPFPM2546T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	10 pcs	1,025 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
