Baldor VFSWDL3510

General Purpose Washdown Duty Motor (Stainless Steel) - 1 hp, 1800 rpm, 1 ph, 115/230 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Footless Mount

BaldorMFR # VFSWDL3510SKU # YLSO2EWRLVR4OX3

EnclosureTEFC

Frame56C

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Washdown Duty Motor (Stainless Steel) - 1 hp, 1800 rpm, 1 ph, 115/230 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Footless Mount

Baldor VFSWDL3510

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56C

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsWEEE · CURUS · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage11.300 A @ 115.0 V · 5.650 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load74.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)5.7 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor finishUNPAINTED

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size7 @ 18 AWG

Motor type3538L

Mounting arrangementF1

Number of poles4

Overall length16.26 IN

Power factor75

Product familyWD All SD Non-Encapsulated

Pulley end bearing typeSealed Bearing

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1735 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568855959

Motor CategoryGeneral Purpose Motor (Stainless Steel)

Motor Supply Voltage115/230 V

Base RPM1725 rpm

Weight63 lbs

Mounting TypeFootless

Product TypeWashdown Duty Motors

Nameplate

Catalog numberVFSWDL3510

Weight41

Specification number35E4628G402

EnclosureTEFC

Ingress protection (IP)69

Horsepower (HP)1

NEMA nominal efficiency (%)74

Voltage (V)115/230

Current (A)11.3/5.65

Power factor75

Rating40C AMB-CONT

Speed (rpm)1735

Frame size56C

Frequency (Hz)60

Code letter (locked rotor kVA)K

Insulation classF

Service factor1.15

Phase1

NEMA design letterL

Drive end bearing6205

Opposite drive end bearing6205

LubricationPOLYREX EM

Nameplate numberNP4427ALG30

Performance

General characteristics· 115 V, 60 Hz, 1 hp

Line-to-line resistance at 25 °C (ohms)0.44 Ω / 0.977 Ohms B Ph

Temperature rise at rated load (°C)62° C

Temperature rise at service factor load (°C)71° C

Start configurationDOL

Breakdown torque9.56 lb-ft

Pull-up torque5.55 lb-ft

Locked-rotor torque8.58 lb-ft

Starting current (A)76.9 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	11	36	55	68	76	81	79	79
Efficiency %	0	68.8	76.9	77.4	75.2	69.7	1.2	71.9
Speed rpm	1798	1785	1769	1751	1725	1683	65.1	1700
Line amps A	6.33	6.74	7.76	9.32	11.4	14.27	34.96	13.1
Power W	82.62	280	490	726	996	1330	3182	1196
Torque lb-ft	0	0.76	1.5	2.26	3.06	3.88	3.96	3.55

Documents & CAD

For this product 3

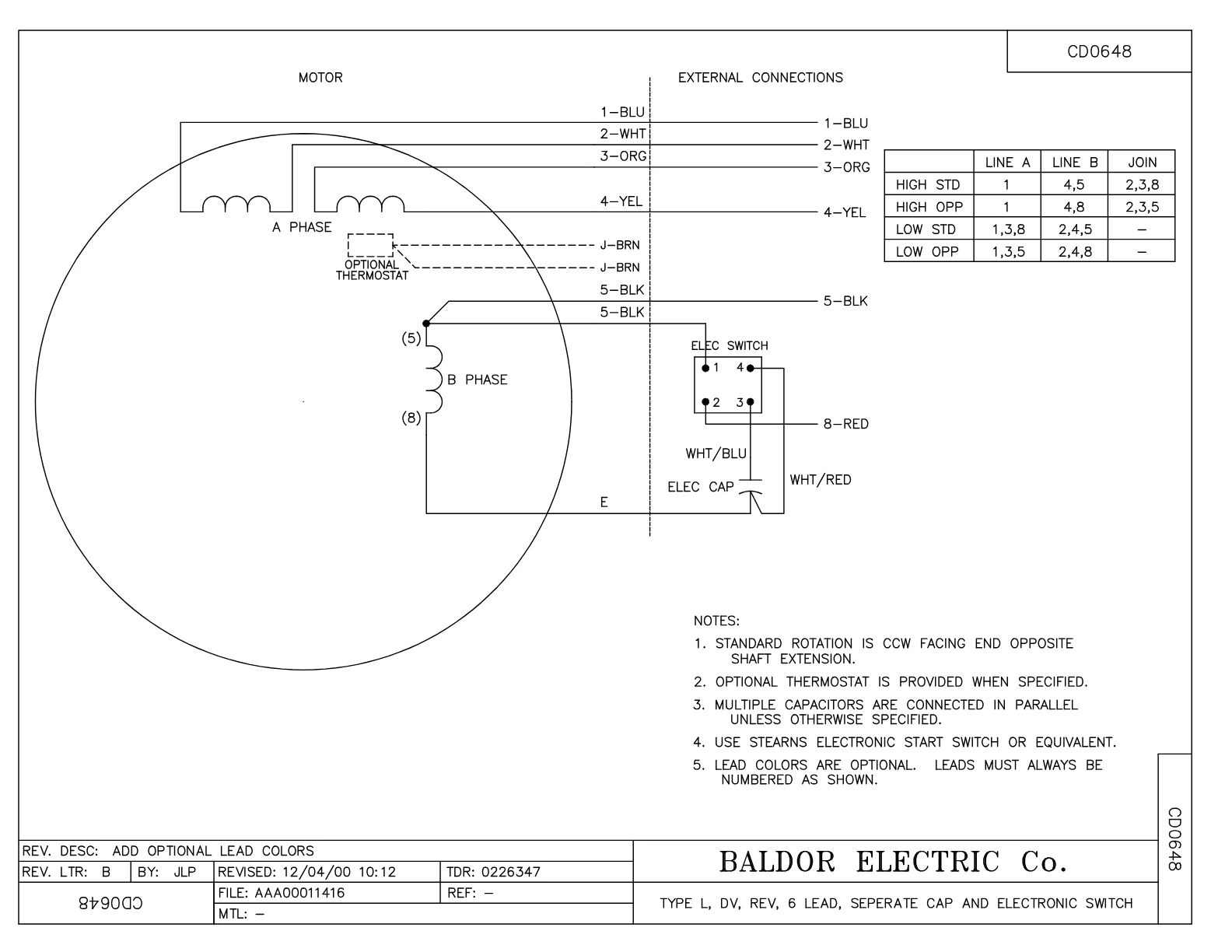

Wiring DiagramWiring DiagramPDF·48 KB·English

DatasheetDatasheetPDF·599 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·108 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor VFSWDL3510 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
