Baldor M1219

Two Speed Motor - 3/4 hp / 1/3 hp, 1200 rpm / 1800 rpm, 3 ph, 460 V, 56 Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 1140 rpm / 1725 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # M1219SKU # YLSPK0KSQ99JMSA

EnclosureOPEN

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.330 HP @ 60 HZ · .750 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Two Speed Motor - 3/4 hp / 1/3 hp, 1200 rpm / 1800 rpm, 3 ph, 460 V, 56 Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 1140 rpm / 1725 rpm Base, Foot Mount, Continuous Duty

Baldor M1219

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.330 HP @ 60 HZ · .750 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage1.260 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)0.9 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeJ

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3520M

Mounting arrangementF1

Number of poles4 · 6

Overall length11.07 IN

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1160 rpm · 1720 rpm

Speed code2S-2W-VT

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568147412

Motor CategoryTwo Speed Motor

Motor Supply Voltage460 V

Base RPM1140 rpm / 1725 rpm

Harmonization Code8501.51.4040

Weight37 lbs

ApplicationsFans, blowers, and pumps.

Additional DetailsDesigned for use in applications in which multiple speeds are required. Heavy duty steel or cast-iron frames, ball bearing, dynamically balanced rotors.

Mounting TypeFoot

Product TypeDefinite Purpose Motors

Nameplate

Catalog numberM1219

Specification number35B011G354G1

Horsepower (HP).75/.33

Voltage (V)460

Current (A)1.26/.89

Speed (rpm)1720/1160

Frame size56

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)J

NEMA design letterB

Insulation classF

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP1256L

Performance

General characteristics· 460 V, 60 Hz, 0.75 hp

Line-to-line resistance at 25 °C (ohms)44.1 Ω

Temperature rise at rated load (°C)60° C

Temperature rise at service factor load (°C)77° C

Start configurationDOL

Breakdown torque6.93 lb-ft

Pull-up torque4.25 lb-ft

Locked-rotor torque5.54 lb-ft

Starting current (A)7.21 A

Line-to-line resistance at 25 °C (ohms)81.1 Ω

Start configurationDOL

Breakdown torque5.93 lb-ft

Pull-up torque2.76 lb-ft

Locked-rotor torque4.06 lb-ft

Starting current (A)4.11 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	16	37	54	69	76	83	87	83
Efficiency %	0	54.3	67.9	71.9	73	72	69.5	72
Speed rpm	1796	1781	1763	1744	1722	1695	1662	1695
Line amps A	0.865	0.907	0.994	1.08	1.26	1.45	1.69	1.45
Power W	110	267	424	592	767	956	1165	956
Torque lb-ft	0	0.573	1.15	1.72	2.29	2.86	3.43	2.86

Documents & CAD

For this product 3

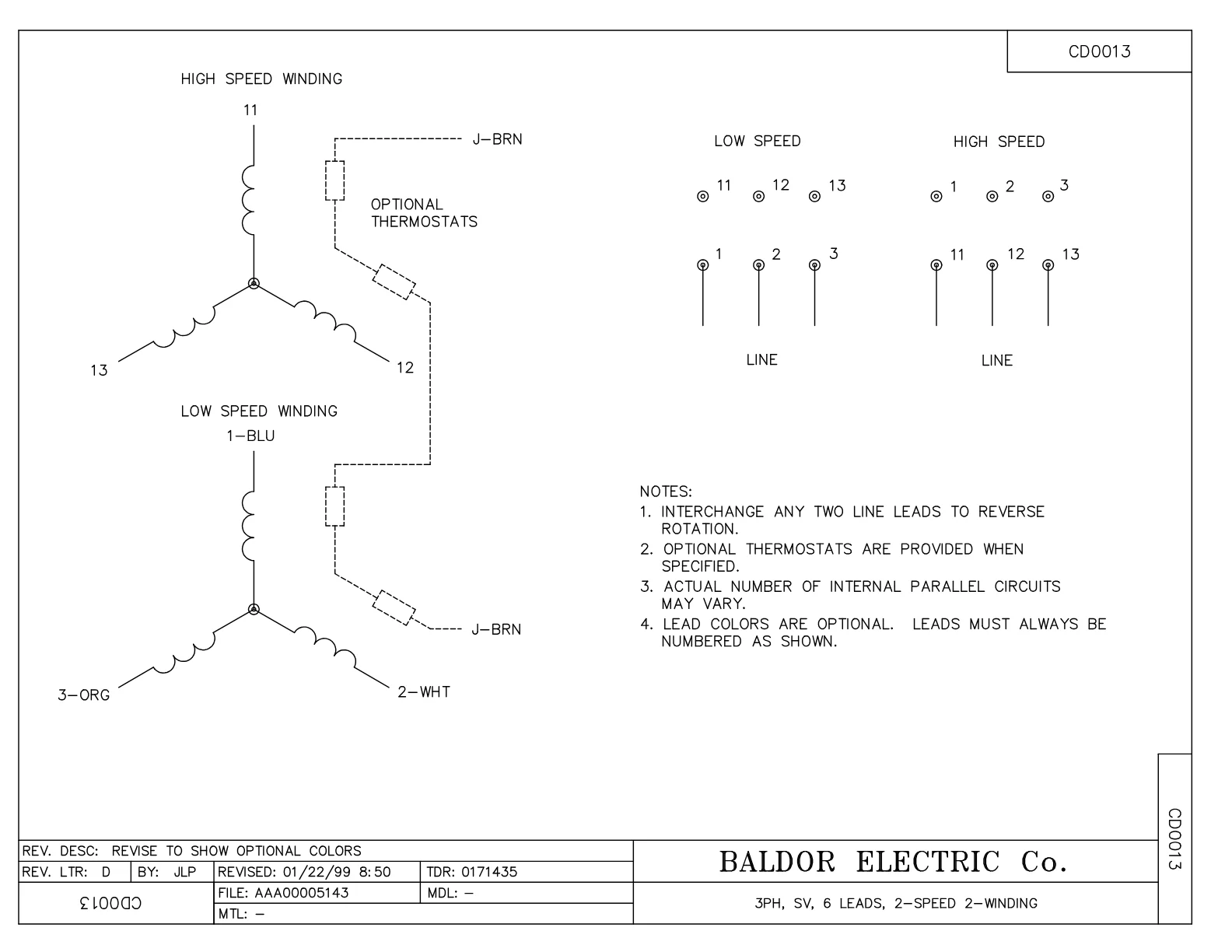

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·678 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·108 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor M1219 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors

Accessories 2

Genuine accessories that can be used with the Baldor M1219 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
