How can I get a price quote for Baldor FPM2565T-4?

You can request a fast quote for Baldor FPM2565T-4 from Yılsa Engineering. Reference part number YLSOMO0SWRTNKNP. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor FPM2565T-4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor FPM2565T-4 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor FPM2565T-4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor FPM2565T-4

FPM2565T-4

BaldorMFR # FPM2565T-4SKU # YLSOMO0SWRTNKNP

EnclosureODP

Frame445TS

Frame materialCast Iron

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency250.000 HP @ 60 HZ · 200.000 HP @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor FPM2565T-4 (FPM2565T-4) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor FPM2565T-4 — price, stock availability and technical specifications.

Baldor FPM2565T-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame445TS

Frame materialCast Iron

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency250.000 HP @ 60 HZ · 200.000 HP @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency380.0 V @ 50 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCULUS · CCSAUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage279.000 A @ 380.0 V · 288.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load94.5 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)279.0 a

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeE

Lifting lugsNo Lifting Lugs

Motor lead quantity/wire size12 @ 4 AWG

Motor typeA44056M

Mounting arrangementF1

Number of poles2

Overall length35.88 IN

Power factor86

Product familyOther

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter2.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)2960 rpm · 3560 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

UPC781568812020

Nameplate

Catalog numberFPM2565T-4

Specification numberP44G1853

Frame size445TS

Frequency (Hz)60

Horsepower (HP)250

Speed (rpm)3560

Frequency (Hz)50

Horsepower (HP)200

Speed (rpm)2960

Voltage (V)460

Code letter (locked rotor kVA)E

Voltage (V)380

Code letter (locked rotor kVA)E

Current (A)288

NEMA design letterB

Current (A)279

NEMA design letterB

Efficiency (%)94.5

Service factor1.15

Power factor86

Efficiency (%)94.4

Service factor1.15

Power factor86

Rating40C AMB-CONT

Drive end bearing65BC03J30X

GreasePOLYREX EM

Opposite drive end bearing65BC03J30X

Insulation classF

Phase3

EnclosureDP

CC number010A

Nameplate numberNP3488L

Documents & CAD

For this product 3

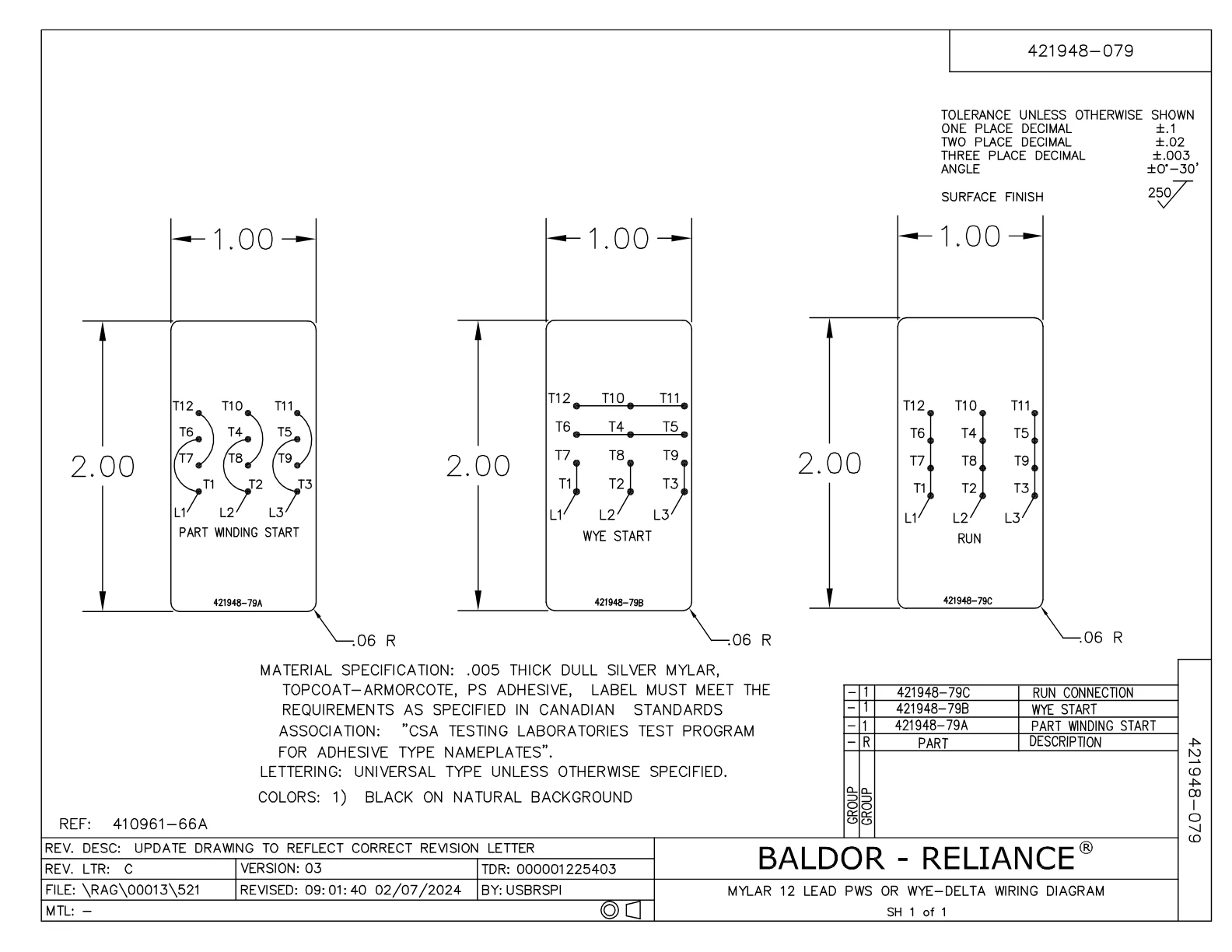

Wiring DiagramWiring DiagramPDF·56 KB·English

DatasheetDatasheetPDF·652 KB·English

Performance CurvePerformance CurvePDF·96 KB·English

Series documents 3· shared by this product series

Dimension DrawingDimension SheetPDF·136 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor FPM2565T-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
