How can I get a price quote for Baldor EM3587T-G?

You can request a fast quote for Baldor EM3587T-G from Yılsa Engineering. Reference part number YLS50IUXBL1KS15. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor EM3587T-G in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor EM3587T-G genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor EM3587T-G?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor EM3587T-G

EM3587T-G

BaldorMFR # EM3587T-GSKU # YLS50IUXBL1KS15

EnclosureTEFC

Frame145T

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency2.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor EM3587T-G (EM3587T-G) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor EM3587T-G — price, stock availability and technical specifications.

Baldor EM3587T-G

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame145T

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency2.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsNEMA PREMIUM · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage2.800 A @ 460.0 V · 5.600 A @ 230.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load86.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)2.8 a

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Ready

IP ratingNONE

KVA codeL

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead terminationFlying Leads

Motor type0526M

Mounting arrangementF1

Number of poles4

Overall length12.54 IN

Power factor76

Product familyGeneral Purpose

Pulley face codeStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.25

Shaft diameter0.875 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Speed (rpm)1750 rpm · 1760 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568912157

Product TypeAir Handling (HVAC) Motors

Nameplate

Catalog numberEM3587T-G

Specification number05-0000-1091

Horsepower (HP)2

Voltage (V)230/460

Current (A)5.6/2.8

Speed (rpm)1760/1750

Frame size145T

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)L

NEMA design letterB

Insulation classH

NEMA nominal efficiency (%)86.5

Power factor76

Rating40C AMB-CONT

CC number010A

EnclosureTEFC

Drive end bearing6205

Opposite drive end bearing6203

Nameplate numberNP3441LUA

Performance

General characteristics· 460 V, 60 Hz, 2 hp

Line-to-line resistance at 25 °C (ohms)8.02 Ω

Temperature rise at rated load (°C)50° C

Temperature rise at service factor load (°C)59° C

Start configurationDOL

Breakdown torque25.5 lb-ft

Pull-up torque14.6 lb-ft

Locked-rotor torque17.7 lb-ft

Starting current (A)24.8 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	7	32	52	66	75	80	83	78
Efficiency %	0	77.4	85.2	86.7	86.9	86.2	84.8	86.5
Speed rpm	1798	1788	1777	1767	1756	1744	1730	1749
Line amps A	1.8	1.87	2.11	2.47	2.9	3.39	3.97	3.19
Power W	101	482	880	1293	1724	2167	2634	1990
Torque lb-ft	0	1.47	2.97	4.47	6.01	7.54	9.09	6.93

Documents & CAD

For this product 3

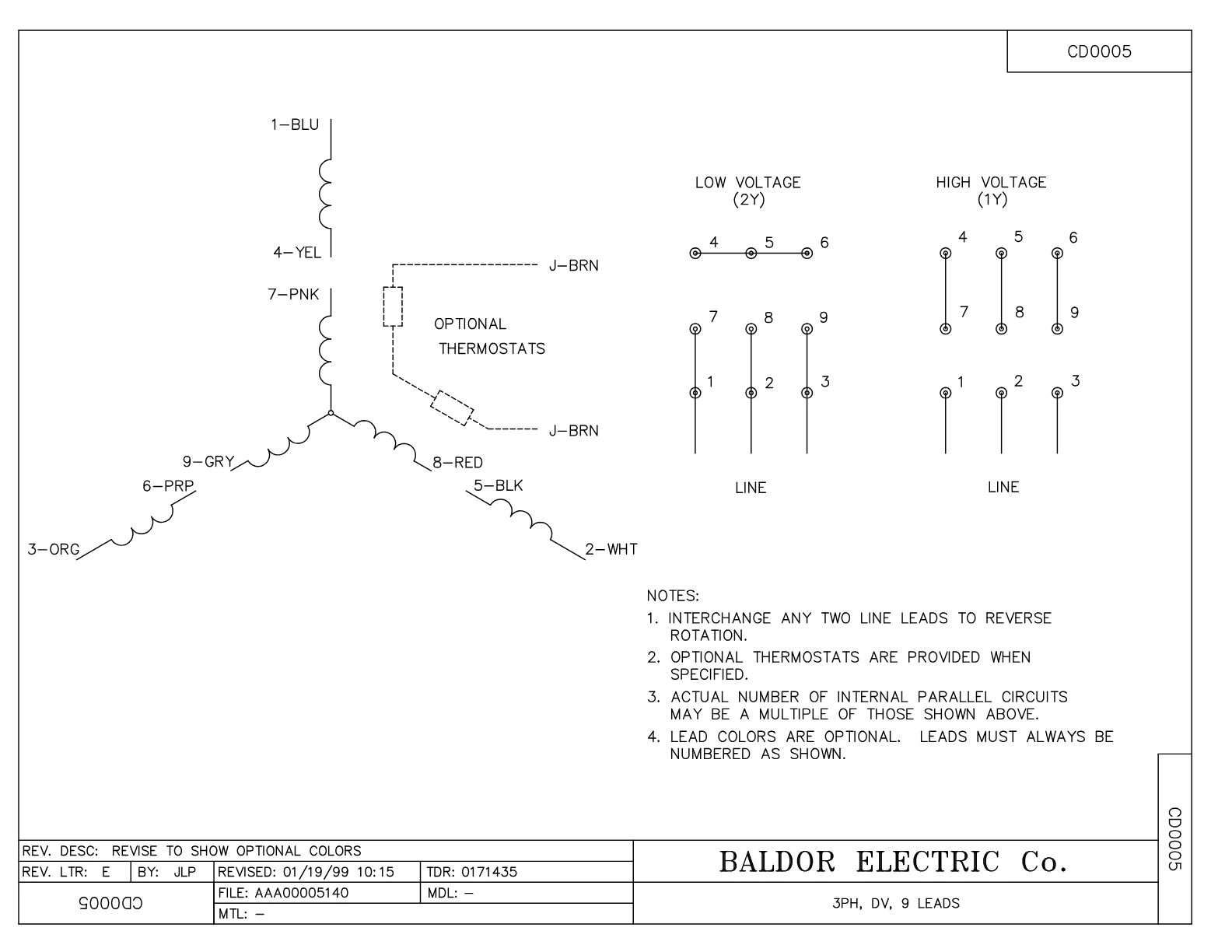

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·647 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·165 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor EM3587T-G motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.022 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
