How can I get a price quote for Baldor EJPM4314T?

You can request a fast quote for Baldor EJPM4314T from Yılsa Engineering. Reference part number YLSU8XYVADPFLAE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor EJPM4314T in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor EJPM4314T genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor EJPM4314T?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor EJPM4314T

EJPM4314T

BaldorMFR # EJPM4314TSKU # YLSU8XYVADPFLAE

EnclosureTEFC

Frame364JP

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor EJPM4314T (EJPM4314T) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor EJPM4314T — price, stock availability and technical specifications.

Baldor EJPM4314T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame364JP

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · CCSAUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage136.000 A @ 230.0 V · 68.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load95.0 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)68.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingNONE

KVA codeG

Lifting lugsStandard Lifting Lugs

Motor lead quantity/wire size3 @ 4 AWG

Motor typeA36062M

Mounting arrangementF1

Number of poles4

Overall length36.30 IN

Power factor87

Product familyPump - Centrifugal

Pulley end bearing typeBall

Pulley face codeOther

Service factor1.15

Shaft diameter1.625 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1780 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

UPC781568909478

Nameplate

Nameplate numberNP2496L

Documents & CAD

For this product 3

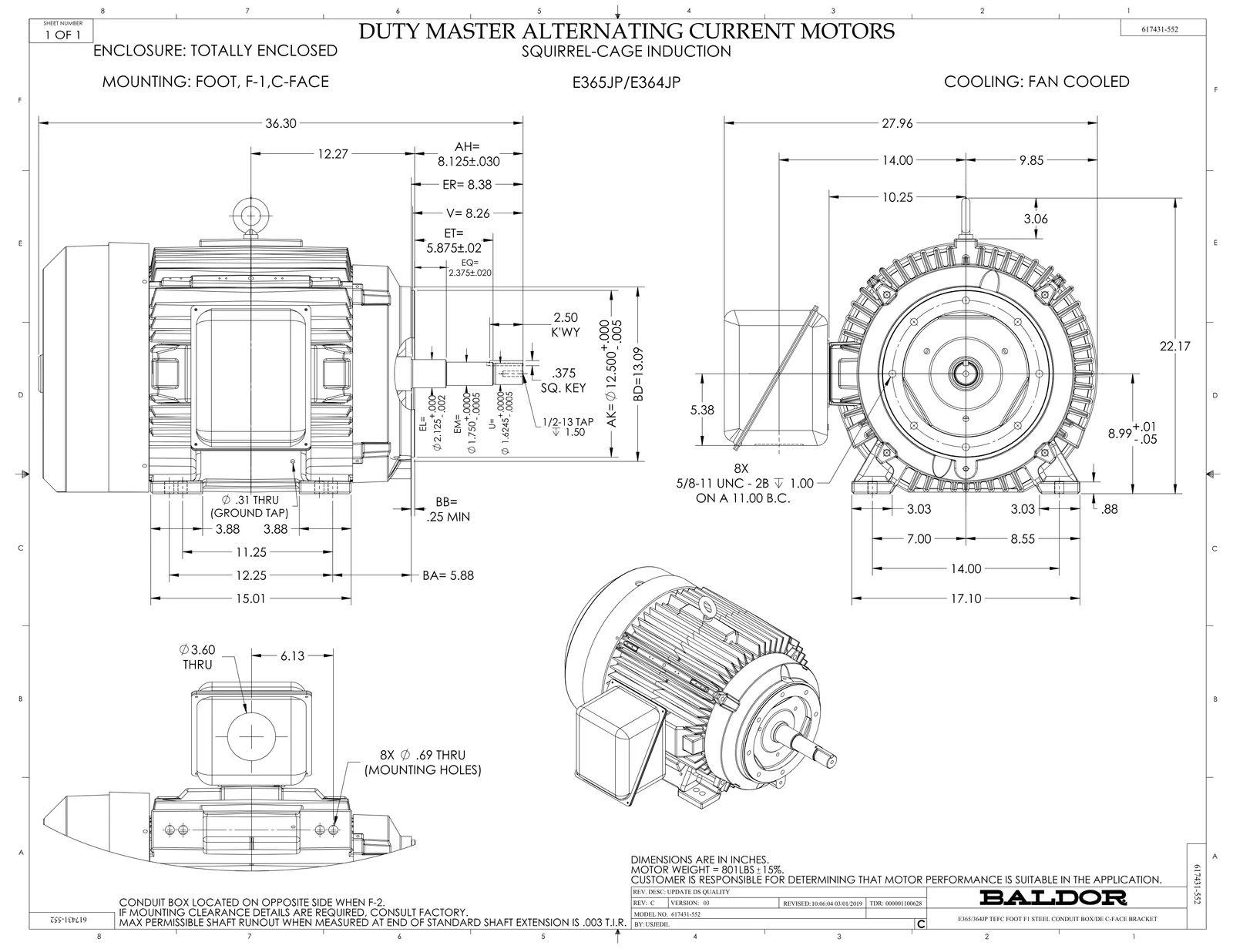

Dimension DrawingDimension SheetPDF·265 KB·English

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·749 KB·English

Series documents 3· shared by this product series

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Performance CurvePerformance CurvePDF·77 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor EJPM4314T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
000692000VD	LABEL WARNING	1 pcs	544 motors
078559001A	+FANCV - 360	1 pcs	93 motors
702676001C	FAN 360	1 pcs	102 motors
077176000L	C/BOX, PAINTED 440	1 pcs	77 motors
043292000AJ	GASK 320-400	1 pcs	75 motors
