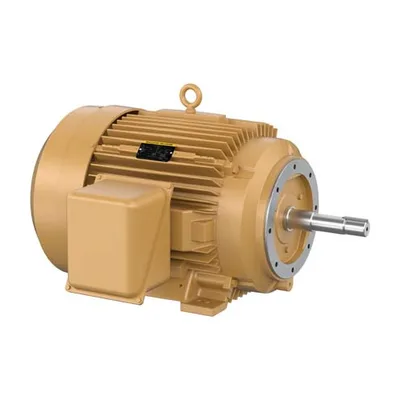

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor EJMM3158T-5

EJMM3158T-5

BaldorMFR # EJMM3158T-5SKU # YLSXZ7TUQS4SV2C

EnclosureOPEN

Frame145JM

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency3.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor EJMM3158T-5 (EJMM3158T-5) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor EJMM3158T-5 — price, stock availability and technical specifications.

Baldor EJMM3158T-5

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame145JM

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency3.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency575.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsNEMA PREMIUM · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage3.000 A @ 575.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load85.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)3.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size3 @ 18 AWG

Motor type3528M

Mounting arrangementF1

Number of poles2

Overall length14.25 IN

Power factor89

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorTapped & Key

Rodent screenIncluded

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568809440

Nameplate

Catalog numberEJMM3158T-5

Specification number35T910L264G1

Horsepower (HP)3

Voltage (V)575

Current (A)3

Speed (rpm)3450

Frame size145JM

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)K

NEMA design letterB

Insulation classB

NEMA nominal efficiency (%)85.5

Power factor89

Rating40C AMB-CONT

CC number010A

Drive end bearing6206

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP1259L

Performance

General characteristics· 575 V, 60 Hz, 3 hp

Line-to-line resistance at 25 °C (ohms)7.4 Ω

Start configurationDOL

Breakdown torque18.8 lb-ft

Pull-up torque12.3 lb-ft

Locked-rotor torque17.4 lb-ft

Starting current (A)25.8 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	10	54	76	85	89	92	93	91
Efficiency %	0	82.5	87.2	87.2	86.1	84.4	82.1	85.1
Speed rpm	3598	3567	3536	3500	3458	3416	3366	3433
Line amps A	1.11	1.32	1.74	2.32	3	3.67	4.47	3.4
Power W	113	713	1314	1963	2655	3346	4123	3070
Torque lb-ft	0	1.16	2.28	3.44	4.65	5.82	7.08	5.35

Documents & CAD

For this product 4

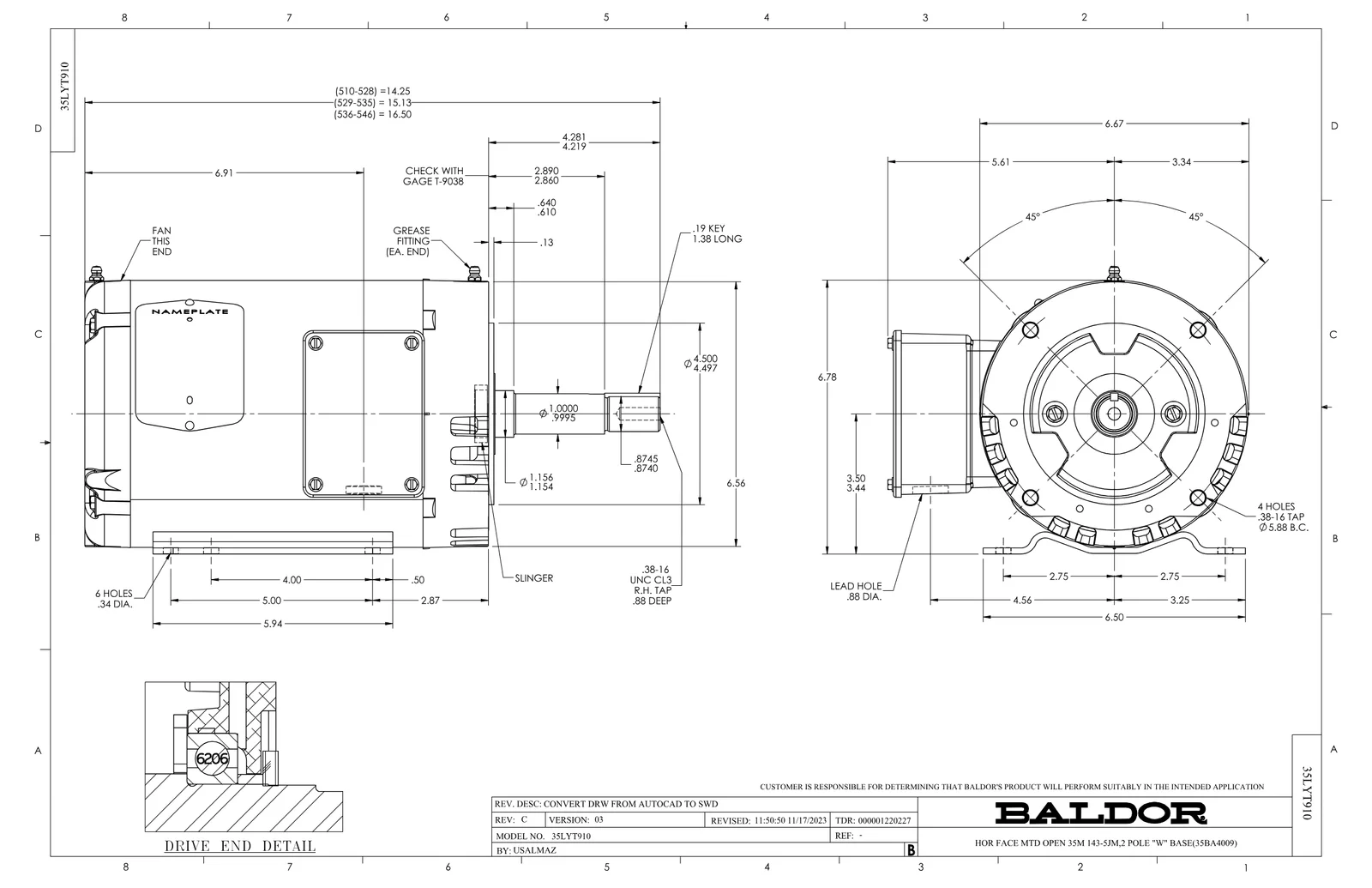

Dimension DrawingDimension SheetPDF·107 KB·English

Wiring DiagramWiring DiagramPDF·38 KB·English

DatasheetDatasheetPDF·589 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor EJMM3158T-5 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.017 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
