How can I get a price quote for Baldor L1200?

You can request a fast quote for Baldor L1200 from Yılsa Engineering. Reference part number CEY-937FC784E675. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor L1200 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor L1200 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor L1200?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor L1200

L1200

BaldorMFR # L1200SKU # CEY-937FC784E675

EnclosureODP

Frame48

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.170 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor L1200 (L1200) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor L1200 — price, stock availability and technical specifications.

Baldor L1200

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame48

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.170 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage1.900 A @ 230.0 V · 2.300 A @ 208.0 V · 3.800 A @ 115.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load49.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)1.9 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeM

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3408L

Mounting arrangementF1

Number of poles4

Overall length9.13 IN

Power factor57

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.35

Shaft diameter0.500 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568100936

Nameplate

Catalog numberL1200

Specification number34F01W20

Horsepower (HP).17

Voltage (V)115/230

Current (A)3.8/1.9

Speed (rpm)1725

Frame size48

Frequency (Hz)60

Phase1

Service factor1.35

Code letter (locked rotor kVA)M

NEMA design letterN

Insulation classB

NEMA nominal efficiency (%)49

Power factor57

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP1256L

Performance

General characteristics· 230 V, 60 Hz, 0.17 hp

Line-to-line resistance at 25 °C (ohms)13.7 Ω / 10.8 Ohms B Ph

Temperature rise at rated load (°C)50° C

Temperature rise at service factor load (°C)61° C

Start configurationDOL

Breakdown torque1.38 lb-ft

Pull-up torque1.2 lb-ft

Locked-rotor torque2.13 lb-ft

Starting current (A)7.8 A

Line-to-line resistance at 25 °C (ohms)3.23 Ω / 10.5 Ohms B Ph

Temperature rise at rated load (°C)50° C

Temperature rise at service factor load (°C)58° C

Start configurationDOL

Breakdown torque1.38 lb-ft

Pull-up torque1.2 lb-ft

Locked-rotor torque2.35 lb-ft

Starting current (A)16.2 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	25	32	41	49	57	63	69	67
Efficiency %	0	21	35	45	49	52	53	53
Speed rpm	1795	1775	1760	1730	1710	1685	1650	1665
Line amps A	1.75	1.75	1.8	1.9	2	2.1	2.4	2.2
Power W	101	150	179	205	248	288	332	0
Torque lb-ft	0	0.125	0.25	0.375	0.5	0.625	0.75	0

Documents & CAD

For this product 4

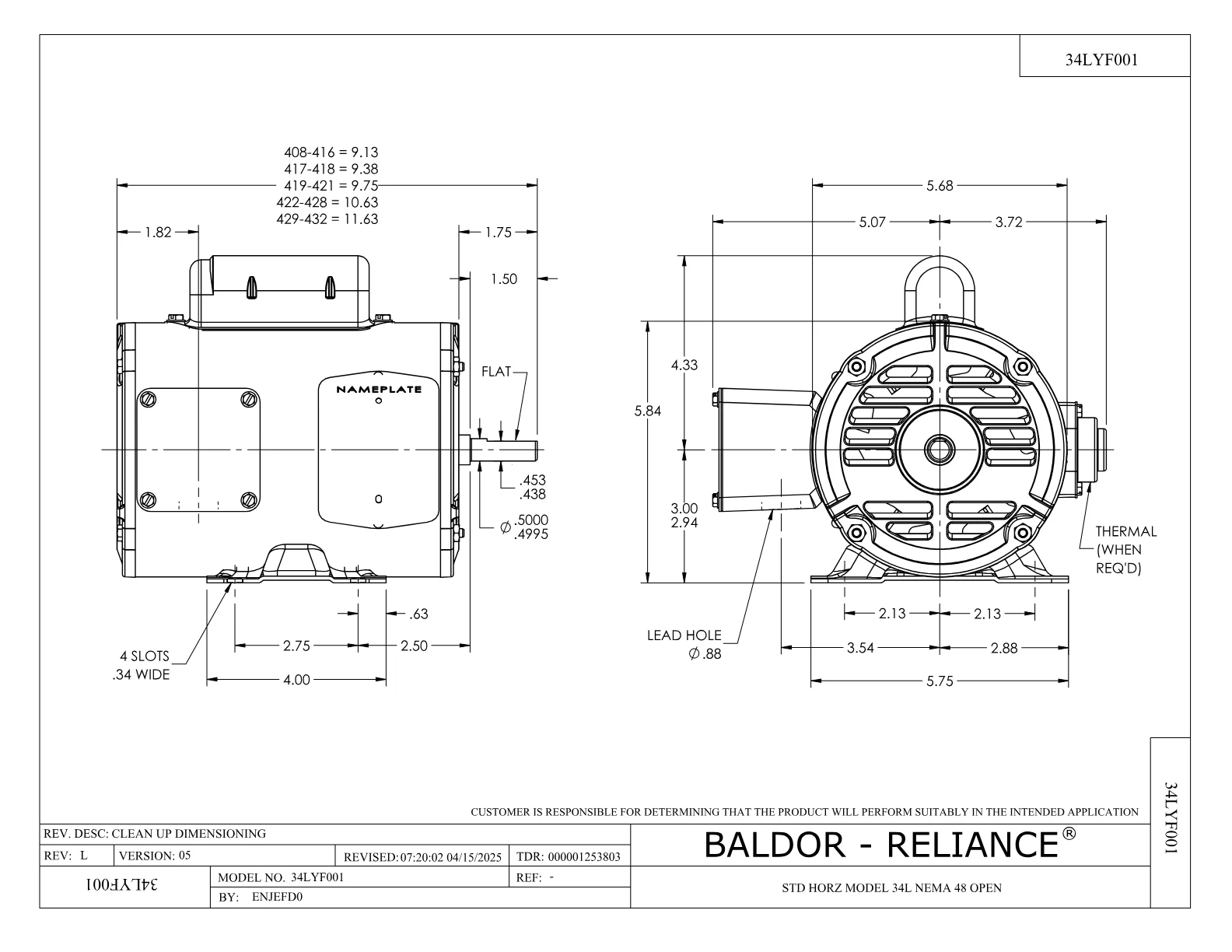

Dimension DrawingDimension SheetPDF·104 KB·English

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·665 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor L1200 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
