Baldor CL1410TM

CL1410TM

BaldorMFR # CL1410TMSKU # CEY-8EF3B02E8D66

EnclosureOPEN

Frame184TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency5.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor CL1410TM (CL1410TM) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor CL1410TM — price, stock availability and technical specifications.

Baldor CL1410TM

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame184TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency5.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage23.000 A @ 230.0 V · 25.000 A @ 208.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load82.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)23.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeG

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 10 AWG, A PH

Motor type3640LC

Mounting arrangementF1

Number of poles4

Overall length16.50 IN

Power factor87

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingDo Not Use

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Manual Thermal Overload

Winding thermal 1 locationKO

Winding thermal 2None

UPC781568112601

Nameplate

Catalog numberCL1410TM

Specification number36F484W903

Horsepower (HP)5

Voltage (V)230

Current (A)23

Speed (rpm)1725

Frame size184TC

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)G

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)82.5

Power factor87

Rating40C AMB-CONT

Drive end bearing6206

Opposite drive end bearing6205

EnclosureOPEN

Nameplate numberNP1257L

Performance

General characteristics· 230 V, 60 Hz, 5 hp

Line-to-line resistance at 25 °C (ohms)0.45 Ω / 1.56 Ohms B Ph

Temperature rise at rated load (°C)90° C

Temperature rise at service factor load (°C)110° C

Start configurationDOL

Breakdown torque34 lb-ft

Pull-up torque28 lb-ft

Locked-rotor torque41 lb-ft

Starting current (A)140 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	25	60	78	86	89	91	91	0
Efficiency %	0	67.2	79.2	82.7	83	81.5	78.5	0
Speed rpm	1799	1786	1772	1756	1739	1718	1691	0
Line amps A	8.4	10.1	13.2	17.2	21.9	27.4	34	25.2
Power W	483	1416	2383	3393	4464	5614	6884	0
Torque lb-ft	0	3.75	7.5	11.25	15	18.75	22.5	0

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·100 KB·English

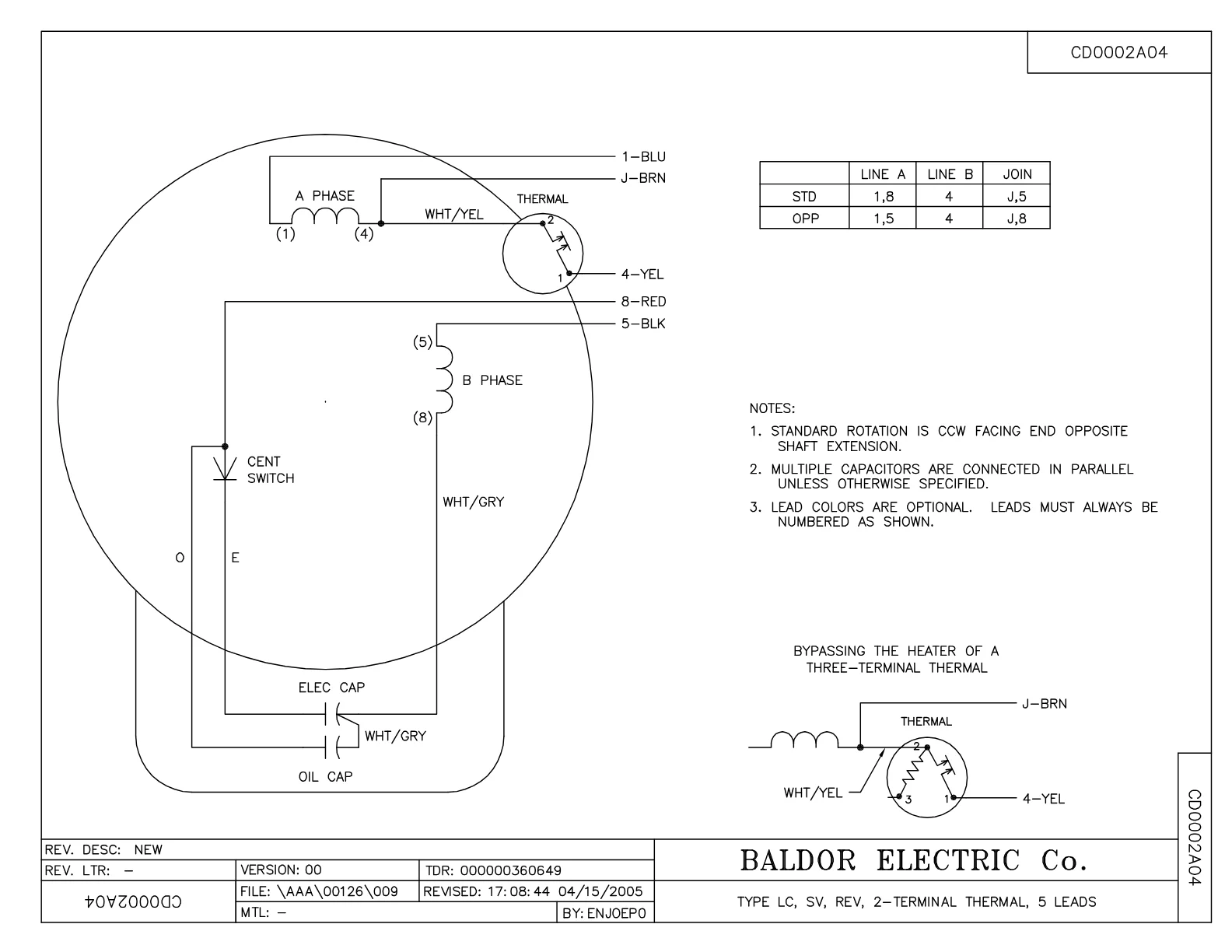

Wiring DiagramWiring DiagramPDF·34 KB·English

DatasheetDatasheetPDF·578 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor CL1410TM motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
