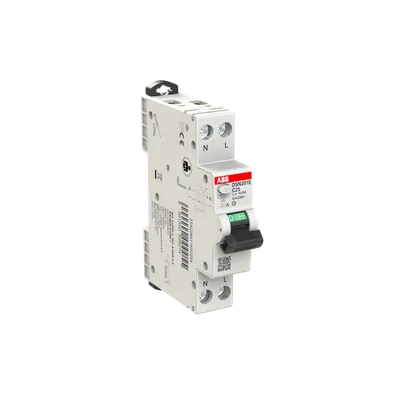

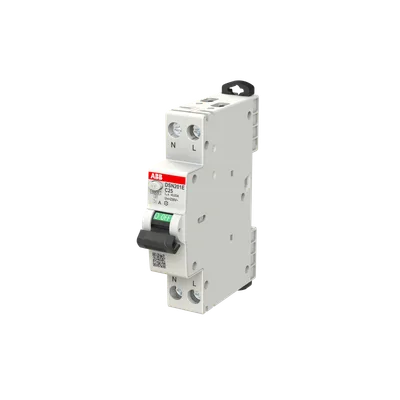

ABB 2TAZ264114R2254
1P+N electronic RCBO in one-module width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA). The neutral is switched
Extended Product TypeDSN201E C25 A30
Type of Residual CurrentType A
Test Voltage (Ut)160 … 264 V
Dielectric Test Voltage2.5 kV
Power Supply ConnectionArbitrary
Energy Limiting Class3
About This Product
1P+N electronic RCBO in one-module width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA). The neutral is switched
ABB 2TAZ264114R2254
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeDSN201E C25 A30
Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 0.2 %, Recycled Cardboard - 46.97 %, Recycled Cardboard - 2.77 %, Recycled Paper - 5 %, Recycled Paper - 45.05 %
Type of Residual CurrentType A
Test Voltage (Ut)160 … 264 V
Dielectric Test Voltage2.5 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu)6 kA
Rated Residual Breaking Capacity (IΔm)3 kA
Rated Service Short-Circuit Breaking Capacity (Ics)6 kA
Power Supply ConnectionArbitrary
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance20000 cycle
Number of Protected Poles1
Number of Poles1P+N
Number of Modular Spacings per DIN Rail1
Position of Neutral TerminalsLeft
Tightening Torque1.2 N·m
Accessory TypeAuxiliary contact, Signal contact
Actuator TypeToggle - Insulation group II
Housing TypeInsulation group I
Screw Terminal TypeCage Terminal
Accessories AvailableYes
Connecting CapacityBusbar 10 mm², Rigid 1 …25 mm², Flexible 1 …16 mm²
Wire Stripping Length13 mm
Terminal TypeScrew Terminals
Rated Operational Voltage230 / 240 V AC
Rated Insulation Voltage (Ui)500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)25 A
Rated Residual Current30 mA
Rated Short-Circuit Capacity6 kA
Rated Frequency (f)50 … 60 Hz
Power LossTotal 4.1 W
Overvoltage CategoryIII
Number of Modules1
Ambient Air TemperatureOperation -25 ... 55 °C, Storage -25 ... 70 °C
Reference Ambient Air Temperature30 °C
Degree of ProtectionTerminals IP20, Housing IP40
Pollution Degree2
Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Shock acc. to IEC 60068-2-2740g 18 shocks 5 ms
Width in Number of Modular Spacings1
Built-In Depth (t2)70 mm
Mounting TypeDIN-Rail
Mounting PositionVertical/Horizontal
StandardsIEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1
