How can I get a price quote for ABB 2CSS256301R0325?

You can request a fast quote for ABB 2CSS256301R0325 from Yılsa Engineering. Reference part number YLSBB6ZTKFXXP2P. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CSS256301R0325 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CSS256301R0325 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CSS256301R0325?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

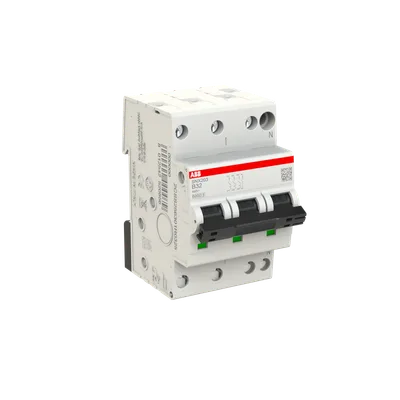

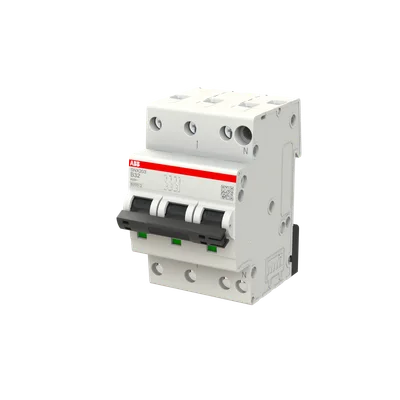

ABB 2CSS256301R0325

The SNX203 series miniature circuit breaker is a 3P+N device in 3 module for the protection of circuits against overload and short circuit. Neutral is on the right. SNX203 is part of the FlexLine portfolio.

ABBMFR # 2CSS256301R0325SKU # YLSBB6ZTKFXXP2P

Extended Product TypeSNX203-B32

Dielectric Test Voltage2.5 kV

Primary Rated Impulse Withstand Voltage4 kV

Power Supply ConnectionBottom

Contact Position IndicationON / OFF

Energy Limiting Class3

Have questions?Chat on WhatsApp

About This Product

ABB 2CSS256301R0325

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeSNX203-B32

Dielectric Test Voltage2.5 kV

Primary Rated Impulse Withstand Voltage4 kV

Power Supply ConnectionBottom

Contact Position IndicationON / OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance20000 cycle

Number of Protected Poles3

Number of Poles3P+N

Number of Modular Spacings per DIN Rail3

Position of Neutral TerminalsRight

Tightening Torque1.2 N·m

Actuator TypeToggle

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Actuator MarkingI / O

Options Providedscrewless

Accessories AvailableNo

Connecting CapacityScrew Clamp / Rigid 1 … 10 mm², Screw Clamp / With Insulated Ferrrule 1 … 6 mm², Screw Clamp / Without Insulated Ferrule 1 … 6 mm², Screw Clamp / Flexible 1 … 10 mm²

Wire Stripping Length12 mm

Terminal TypeScrew Terminals, Push-in Spring Terminals

Short-Circuit Current Rating (SCCR)6 kA

Rated Voltage (Ur)400 V AC

Rated Operational Voltageacc. to IEC 60898-1 400 V

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)32 A

Rated Short-Circuit Capacity(400 V) 6 kA

Rated Frequency (f)50 / 60 Hz

Power LossTotal 13.4 W
