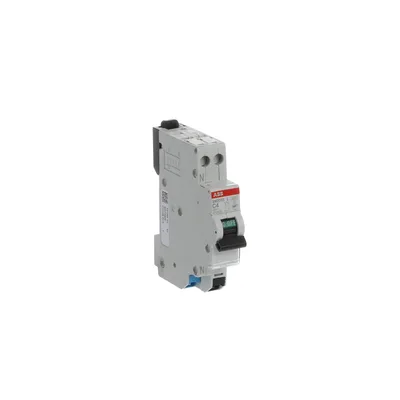

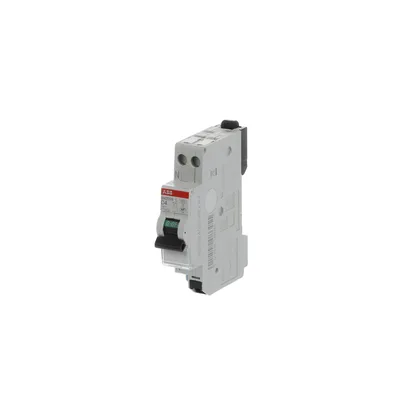

ABB 2CSS245202R0044
The SN201 series miniature circuit breaker is a 1P+N device in 1 module for the protection of circuits against overload and short circuit. Neutral is on the left. Screwless solution for a faster installation
Extended Product TypeSN201S L-C4-L
Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage4 kV
Power Supply ConnectionTop
Contact Position IndicationON / OFF
Energy Limiting Class3
About This Product
The SN201 series miniature circuit breaker is a 1P+N device in 1 module for the protection of circuits against overload and short circuit. Neutral is on the left. Screwless solution for a faster installation
ABB 2CSS245202R0044
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeSN201S L-C4-L
Sustainable Material Content in Packaging (wt. %)Recycled Paper - 00 %, Recycled Cardboard - 79 %
Dielectric Test Voltage50 / 60 Hz - 1 min 2 kV
Primary Rated Impulse Withstand Voltage4 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V) 6 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(230 V AC) 4.5 kA
Power Supply ConnectionTop
Contact Position IndicationON / OFF
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance20000 cycle
Number of Protected Poles1
Number of Poles1P+N
Number of Modular Spacings per DIN Rail1
Position of Neutral TerminalsLeft
Actuator TypeToggle
Accessories AvailableYes
Connecting CapacityFlexible 1 … 10 mm², Rigid 1 … 16 mm²
Wire Stripping Length11 mm
Terminal TypeScrewless Terminals
Rated Voltage (Ur)230 V AC
Rated Operational Voltageacc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)4 A
Rated Short-Circuit Capacity(230 V) 4.5 kA
Rated Frequency (f)50 / 60 Hz
Power LossTotal 2.4 W
Overvoltage CategoryIII
Housing MaterialInsulation group II, RAL 7035
Ambient Air TemperatureOperation -25 ... +55 °C
Reference Ambient Air Temperature30 °C
Degree of ProtectionIP20
Pollution Degree2
Environmental Conditions28 cycles, ;with 55 °C / 90-96 %, ;and 25 °C / 95-100 %
Resistance to Vibrations20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-2730g 2 shocks 13 ms
Width in Number of Modular Spacings1
Built-In Depth (t2)69 mm
Mounting PositionAny
StandardsIEC/EN 60898-1
