How can I get a price quote for ABB 2CSR275151R1165?

You can request a fast quote for ABB 2CSR275151R1165 from Yılsa Engineering. Reference part number YLSYC4HAWURG1JK. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CSR275151R1165 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CSR275151R1165 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CSR275151R1165?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

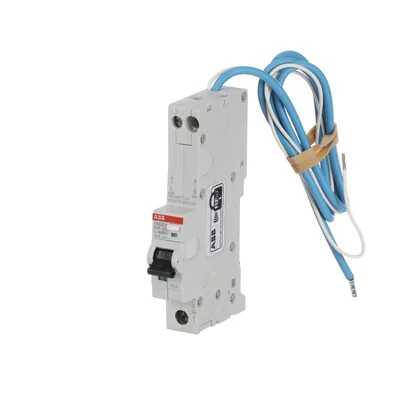

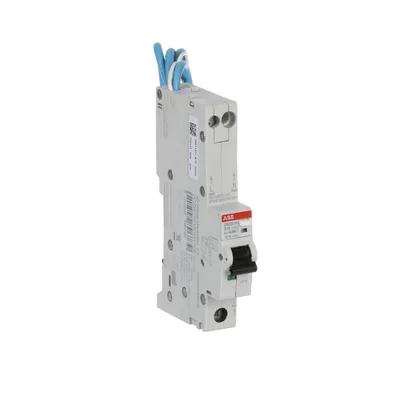

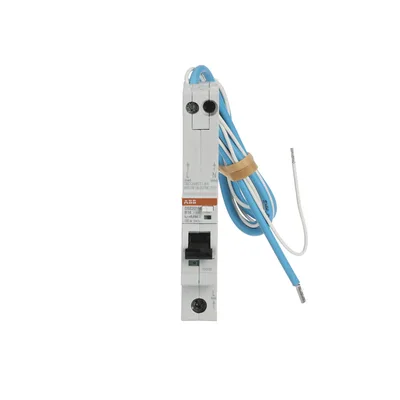

ABB 2CSR275151R1165

1P+N electronic RCBO in one-module width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA). Presence of neutral (blue or black) and functional earth (white) flying leads. The neutral is unswitched

ABBMFR # 2CSR275151R1165SKU # YLSYC4HAWURG1JK

Extended Product TypeDSE201 M B16 A30 - N Blue

Type of Residual CurrentType A

Maximum Operating Voltage264 V

Test Voltage (Ut)195 … 264 V

Dielectric Test Voltage2 kV

Maximum Surge Current0.25 kA

Have questions?Chat on WhatsApp

About This Product

ABB 2CSR275151R1165

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeDSE201 M B16 A30 - N Blue

Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 96.89 %

Type of Residual CurrentType A

Maximum Operating Voltage264 V

Test Voltage (Ut)195 … 264 V

Dielectric Test Voltage2 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)15 kA

Rated Residual Breaking Capacity (IΔm)10 kA

Rated Service Short-Circuit Breaking Capacity (Ics)7.5 kA

Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)7.5 kA

Maximum Surge Current0.25 kA

Power Supply ConnectionBottom

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance20000 cycle

Number of Protected Poles1

Number of Poles1P+N

Number of Modular Spacings per DIN Rail1

Fault IndicationBlue Window

Position of Neutral TerminalsRight

Tightening TorqueTop 1.2 N·m, Bottom 2.8 N·m

Accessory TypeAuxiliary contact, Auxiliary/Signal contact, Shunt trip, Undervoltage release, Overvoltage release, Bottom fitting auxiliary contact

Actuator TypeToggle - Insulation group II, black, sealable in ON-OFF positions

Earthing Switch TypeUndelayed

Housing TypeInsulation group II, RAL 7035

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Accessories AvailableYes

Connecting CapacityBusbar 10 mm², Rigid 1…35 mm², Flexible 1…16 mm²

Rated Cross-Section1 - Solid-Core 1…35 mm², 4 - Multi-Wired 1 … 25 mm²

Wire Stripping LengthTop 11 mm, Bottom 12.5 mm

Terminal TypeScrew Terminals

Short-Circuit Current Rating (SCCR)0.03 A

Rated Operational Voltageacc. to IEC 60898-1 240 V

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)16 A

Rated Residual Current30 mA

Rated Short-Circuit Capacity10 kA

Rated Conditional Short-Circuit Current (Inc)10 kA

Rated Frequency (f)50 … 60 Hz

Power LossTotal 2.4 W

Overvoltage CategoryIII

Ambient Air TemperatureOperation -25 … 55 °C

Reference Ambient Air Temperature30 °C

Degree of ProtectionIP20, IP40

Pollution Degree2

Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %

Resistance to Vibrations20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 Hz

Resistance to Shock acc. to IEC 60068-2-2730g / 2 shocks / 13 ms

Width in Number of Modular Spacings1

Built-In Depth (t2)68.9 mm

Mounting TypeDIN-Rail

Mounting PositionAny

StandardsIEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1, BS EN 61009-1

Documents & CAD

Documents 6

CertificateEnd of life instructions DSE201 MPDF·551 KB·English

CertificatePEP product ecopassport DSE201MPDF·246 KB·English

Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English

CertificateRCM DSE201 MPDF·7.2 MB·English

DatasheetTechnical data sheet DSE201 MPDF·627 KB·English

Instruction ManualMounting and operating instructionsPDF·193 KB·English

CAD Files 2

3D Model

IGES.igs · 16.9 MB

2D Drawing

AutoCAD DXF.dxf · 1.4 MB
