ABB 2CSF602089R3400

Photo may not represent actual item. Refer to name and product specs for all details.

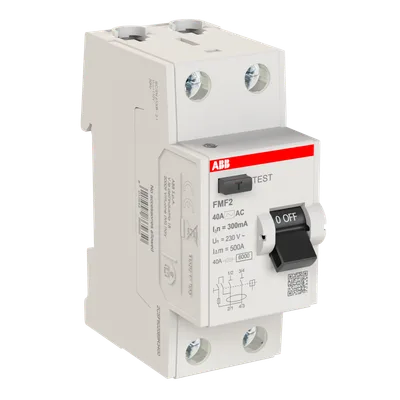

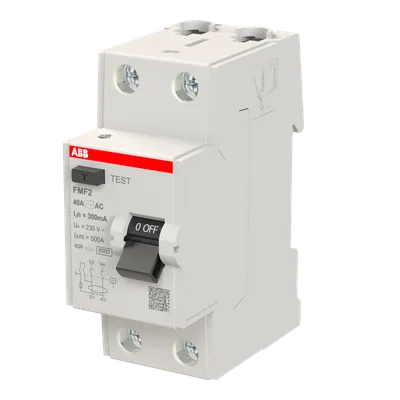

ABB 2CSF602089R3400

FMF240/AC300 Residual Current Circuit Breaker 2P Type AC 40A 300mA

ABBMFR # 2CSF602089R3400SKU # YLS03XN9INA569I
Extended Product TypeFMF240/AC300
Offered with Takeback ServicesTake Back for Recycling
Type of Residual CurrentType AC
Maximum Surge Current250 A
Leakage Current TypeAC
Electrical Endurance2000 cycle
Share
Have questions?Chat on WhatsApp

About This Product

FMF240/AC300 Residual Current Circuit Breaker 2P Type AC 40A 300mA

ABB 2CSF602089R3400

  • Genuine, certified ABB product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Extended Product TypeFMF240/AC300
Offered with Takeback ServicesTake Back for Recycling
Type of Residual CurrentType AC
Rated Service Short-Circuit Breaking Capacity (Ics)6 kA
Maximum Surge Current250 A
Leakage Current TypeAC
Electrical Endurance2000 cycle
Mechanical Endurance5000 cycle
Number of Protected Poles2
Number of Poles2P
Tightening Torque2 N·m
Actuator TypeToggle
Actuator MarkingI / O
Recommended Screw DriverPozidriv 2
Accessories AvailableNo
Wire Stripping Length12.5 mm
Rated Voltage (Ur)230 V
Rated Operational Voltage230 V
Rated Insulation Voltage (Ui)500 V AC
Rated Impulse Withstand Voltage (Uimp)4 kV
Rated Current (In)40 A
Rated Residual Current300 mA
Rated Frequency (f)50 Hz
Ambient TemperatureOperation -5 ... +55 °C
Ambient Air TemperatureOperation -5 ... +55 °C
Degree of ProtectionIP20, Enclosure with Cover IP40
Pollution Degree2
Width in Number of Modular Spacings2
Built-In Depth (t2)69 mm
Mounting TypeDIN-Rail
StandardsIEC/EN 61008-1

Documents & CAD

Documents 11

CertificateCE Declaration: Formula India FMF RCCBPDF·43 KB·English
Instruction ManualInstruction Manual: Formula India FMF RCCBPDF·9.5 MB·English
CertificateCB test certificate: Formula India FMFPDF·257 KB·English
CertificateEnd Of Life Instruction: Formula India FMFPDF·923 KB·English
CertificateTSE-CERTIFICATE OF CONFORMITY TO TURKISH STANDARDSPDF·688 KB·English
CertificateCB certificate - FMFPDF·478 KB·English
CertificateProduct environment profile: Formula India FMFPDF·120 KB·English
Technical DrawingFormula IN with failsafe - FMF4 Dimensional drawingPDF·192 KB·English
Technical DrawingFormula IN with failsafe - FMF2 Dimensional drawingPDF·190 KB·English
Instruction ManualEnd of Life Instruction Formula DIN Rail RCCBPDF·465 KB·English
Wiring DiagramWiring Diagram - Formula FMF 4PPDF·99 KB·English
